▎Products Description
PVC Foam Shoe Compound
Lightweight microcellular PVC for shoe soles — 60% lighter with bounce. Get free samples!
Lightweight microcellular PVC for shoe soles — 60% lighter with bounce. Get free samples!
Previous: PVC Compound for Footwear
★ Premium Foam Shoe Compound Supplier ★
30+ Years PVC Modification Technology · ISO Certified Manufacturer
Export to 120+ Countries Worldwide · SGS, Intertek, Bureau Veritas Verified
Product Overview
Small BossSmallBoss PVC Foam Compound for Footwear is a specially engineered flexible PVC compound with integrated chemical blowing agent, designed for injection molding of lightweight, cushioned shoe soles. The compound activates controlled microcellular expansion during processing, reducing sole density by 30-50% compared to solid PVC while maintaining excellent surface finish and mechanical strength.
Available in three grade series: SB-FS-L (Ultra-Light, density 0.4-0.6 g/cm3 for slippers and sandals), SB-FS-C (Comfort, density 0.6-0.8 g/cm3 for casual footwear), and SB-FS-S (Sport, density 0.8-0.9 g/cm3 for athletic and safety shoes). Ca/Zn stabilization system, REACH/RoHS compliant, with custom hardness from Shore A 45 to 80.
· Specification
Small Boss| Parameter | Value |
|---|---|
| Product Name | PVC Foam Compound for Footwear (Air Blowing Grade) |
| Material Type | Flexible PVC (Soft PVC) Chemical Foaming Compound |
| Application | Slippers, Sandals, Casual Shoes, Sports Shoes, Safety Shoes |
| Grade Series | SB-FS-L (Ultra-Light) | SB-FS-C (Comfort) | SB-FS-S (Sport) |
| Exterior | Natural, White, Black, or Custom Colors |
| Pre-Foaming Density | 1.18-1.35 g/cm3 |
| Post-Foaming Density | 0.4-0.9 g/cm3 (adjustable) |
| Hardness (Foamed) | Shore A 45-80 (customizable) |
| Tensile Strength | ≥ 8 MPa |
| Elongation at Break | ≥ 200% |
| Tear Strength | ≥ 30 N/mm |
| Abrasion Resistance | ≤ 300 mm3 (DIN 53516) |
| Flexing Resistance | ≥ 40,000 cycles (no crack) |
| Foaming Ratio | 1.5-3.0x |
| Thermal Stability (180°C) | ≥ 60 min |
| Compression Set | Excellent recovery after prolonged compression |
| Processing Temperature | 160-200°C |
| Processing Method | Injection Molding (Air Blowing / Chemical Foaming) |
| Stabilizer System | Ca/Zn (Lead-Free, Phthalate-Free option available) |
| Compliance | REACH, RoHS, PAHS |
· Advantage
Small Boss🔶Uneven Foaming & Unstable Cell Structure
Precision-engineered granules ensure uniform microcellular structure and consistent density across the entire sole, with surface defect rate below 2%.
🔶Thermal Degradation & Yellowing During Processing
Premium thermal stabilization ensures ≥60 min stability at 180°C with a wide processing window (160-200°C), no discoloration or die buildup for extended production runs.
🔶High Density & Excessive Material Cost
Advanced foaming technology reduces density by up to 50% (as low as 0.4 g/cm3), saving 15-20% material per pair and lowering per-unit cost.
🔶Poor Rebound & Compression Set
High-elasticity compound design maintains excellent rebound (>35%) and low compression set, keeping soles comfortable and shape-retaining through extended wear.
🔶Proven Quality Control
Every batch undergoes rigorous QC testing including mechanical properties, dimensional stability, and color consistency. Our ISO-certified lab ensures compound performance matches specifications batch after batch.
· Application

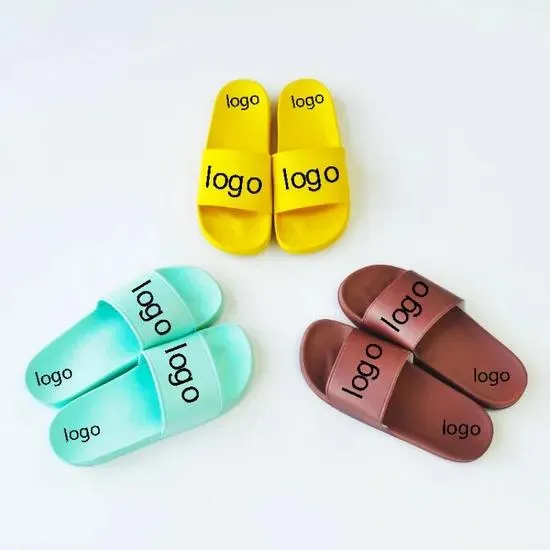

Small Boss🔶Slippers & Flip Flops
Ultra-lightweight one-piece injection molded slippers and flip flops with soft, cushioned feel. Density as low as 0.4 g/cm3 for maximum comfort.
🔶Casual & Fashion Sandals
Fashion-forward sandals and casual footwear with vibrant color options, smooth surface finish, and excellent wear resistance for everyday use.

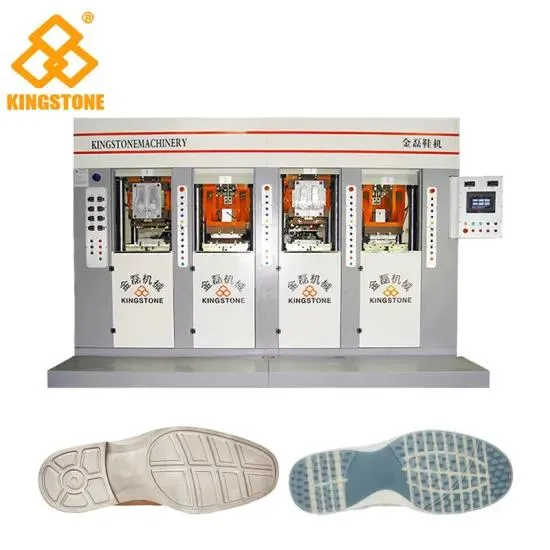

🔶Sports & Athletic Shoes
Midsoles and outsoles for running, walking, and court shoes with superior energy return, flexing resistance ≥40,000 cycles, and abrasion resistance ≤300 mm3.
🔶Safety & Work Shoes
Durable work shoe soles with optional anti-slip, oil-resistant, and anti-static formulations. Higher density grade (0.8-0.9 g/cm3) for industrial footwear.
🔶Specialty Profiles
Custom extruded profiles for specialized applications in industrial and commercial settings.
🔶Custom Formulations
Tailored compounds developed to meet specific customer requirements for hardness, color, and processing characteristics.
Slippers & Flip Flops
Sports & Athletic Shoes
Specialty Profiles
· Why Choose Us
Small BossTongxiang Small Boss Special Plastic Products Co., Ltd. is a professional PVC compound manufacturer with 30+ years of experience in PVC modification technology. Headquartered in Tongxiang, Zhejiang Province, China, we specialize in developing PVC foam compounds for footwear injection molding — serving shoe manufacturers across Southeast Asia, Africa, the Middle East, and Latin America.
Our production facility features 120+ extrusion lines with an annual capacity of 72,000 metric tons. We export to 100+ countries worldwide and maintain long-term partnerships with leading footwear manufacturers. REACH/RoHS compliant, with custom formulations for slippers, sandals, casual shoes, sports shoes, and safety footwear. Full technical support from trial to mass production.
As an ISO-certified manufacturer, we maintain rigorous quality control systems. Our products are tested and verified by international third-party laboratories including SGS, Intertek, and Bureau Veritas.
30+ Years Experience
PVC Modification Technology
72,000 MT/Year
Production Capacity
100+ Countries
Global Export Coverage
OEM/ODM Available
Custom Formulations
Ready to Upgrade Your Foam Shoe Compound Supply Chain?
Get Free Samples & Technical Consultation
Email: zt02@smallboss.com | Website: www.ztsmallboss.com
