CB01 combines a 7/8 in PVC corner bead with 4.5 oz alkali-resistant fiberglass mesh attached to both legs. It is intended for straight outside corners in compatible direct-applied finish and EIFS assemblies; the catalog lists 2.5 m standard length and 100 pieces per box.
CB01 combines a 7/8 in PVC corner bead with 4.5 oz alkali-resistant fiberglass mesh attached to both legs. It is intended for straight outside corners in compatible direct-applied finish and EIFS assemblies; the catalog lists 2.5 m standard length and 100 pieces per box.
CB01 combines a 7/8 in PVC corner bead with 4.5 oz alkali-resistant fiberglass mesh attached to both legs. It is intended for straight outside corners in compatible direct-applied finish and EIFS assemblies; the catalog lists 2.5 m standard length and 100 pieces per box.
Buyer shortcut: Send the model or drawing, required length, colour, quantity, application and destination. Reference MOQ: 10,000 m.

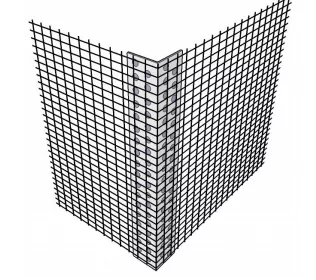

Current Small Boss product image for model identification.
22.5 × 22.5 mmProfile legs shown in drawing
4.5 ozCatalog mesh weight
2.5 mStandard length
10,000 mReference MOQ for this profile category
Model-specific data
Clean Product Drawing and Searchable Specifications
The visual and table are separated so dimensions do not become mixed with adjacent catalog models.
Clean crop from the supplied English profile catalog. Only data relevant to this product page is shown.
Product model
CB01 Mesh
PVC bead flange
7/8 in
Profile drawing
22.5 × 22.5 mm
Mesh
4.5 oz alkali-resistant fiberglass mesh on both legs
Standard length
2.5 m
Packing
100 pieces per box
Selection boundary: Catalog dimensions support identification and quotation. Final tolerance, formulation, colour, length, packing, compliance and suitability follow the approved drawing, sample and order specification.
Decision points
Why Buyers Specify This Profile
Integrated mesh
PVC bead and 4.5 oz alkali-resistant fiberglass mesh are supplied as one corner component.
22.5 mm profile legs
The drawing gives a clear profile basis for facade-system review.
EIFS detailing
Selection is coordinated with base coat, reinforcement overlap and opening-return details.
Application fit
Where the Product Fits and What Must Be Confirmed
EIFS outside corners
Integrated mesh helps connect the corner profile to the compatible base-coat and reinforcing-mesh layer.
Direct-applied finishes
A factory-combined bead-and-mesh component can reduce separate corner wrapping steps when accepted by the system specification.
Facade openings and returns
Use at corners and returns only where mesh overlap, base-coat thickness and movement details follow the approved facade system.
Selection guidance
Confirm the facade system, mesh overlap, alkali-resistance requirement, opening details, bead length and compatibility with the specified base coat. Do not select only by the visible corner angle.
Original technical visual
Installation Detail Illustration
This visual explains product placement and is not presented as a completed Small Boss project case.
CB01 mesh corner bead in an EIFS base-coat layerOriginal installation illustration showing the PVC corner profile and integrated fiberglass-mesh wings before the reinforcement layer is concealed.
HOW TO USE THIS VISUAL
Confirm the exposed profile before it is concealed
Use the illustration together with the clean product drawing and searchable specification table above. Substrate, fixing, compatible compound or base coat, reinforcement overlap, movement joints, sealant and drainage details remain project-specific.
Disclosure: Original technical illustration created for product-selection guidance. It is not a photograph of a documented customer project.
Installation planning
Four Checks Before the Product Is Concealed or Put into Service
01
Confirm the wall system
Verify substrate, lath or insulation system, finish thickness, opening and movement details.
02
Cut and position
Keep the profile straight and align the nose or ground to the required finished plane.
03
Fix and integrate
Use the approved fastening or base-coat method; maintain required mesh overlap where applicable.
04
Finish and inspect
Check corner line, coating coverage, drainage or sealant details before final acceptance.
Submittal readiness
Information and Documents to Align Before Production
Buyer supplies
Model, dimensioned drawing or physical sample
Application, substrate or equipment interface
Target standard, test method and acceptance criteria
Colour, length, quantity, packing and destination
Confirm with Small Boss
Approved product drawing and sample plan
Tooling, tolerance and material option
Applicable inspection and test documents
Production, packaging and delivery schedule
Manufacturing evidence
Small Boss Profile Manufacturing and Quality-Control Basis
1992Manufacturing origin; legal company registered in 2002
64,314.88 m²Certified building area
150+Production and pilot lines across company categories
350+Employees as of August 5, 2026
>30%R&D personnel share
100+Countries and regions supplied cumulatively
Tongxiang Small Boss Special Plastic Products Co., Ltd. began manufacturing activity in 1992 and was formally registered in 2002. Management systems are certified to ISO 9001, ISO 14001 and ISO 45001. As of July 2026, the company held 73 valid domestic patents and 4 valid international patents.
RFQ checklist
Get a Faster, Technically Relevant Quotation
MOQReference MOQ: 10,000 m
ProductModel/drawing, dimensions, length, colour and quantity
ApplicationEnvironment, loads/service conditions, installation and standard
DeliveryDestination, packaging, required documents and schedule
Use the page inquiry form and attach or describe the drawing and application. A complete RFQ reduces repeated clarification and helps the technical team respond with the correct profile basis.
Technical answers
CB01 PVC Corner Bead with Alkali-Resistant Mesh FAQ
What mesh is listed for CB01?
The English catalog lists 4.5 oz alkali-resistant fiberglass mesh attached to both PVC bead legs.
Can CB01 replace the complete EIFS reinforcement design?
No. Mesh overlap, base coat, corner reinforcement and opening details remain part of the approved EIFS or direct-applied finish system.
