▎Products Description
PVC Compound for Corrugated Pipe
Crush-resistant PVC for corrugated pipe (UL 94 V-0). Buried conduit grade. Get free samples!
Crush-resistant PVC for corrugated pipe (UL 94 V-0). Buried conduit grade. Get free samples!
Previous: PVC Compound for Pipe Extrusion
★ Premium Corrugated Pipe Compound Supplier ★
30+ Years PVC Modification Technology · ISO Certified Manufacturer
Export to 120+ Countries Worldwide · SGS, Intertek, Bureau Veritas Verified
Product Overview
Small BossSmallBoss PVC Compound for Corrugated Pipe is a rigid PVC (UPVC) extrusion-grade compound specifically engineered for manufacturing corrugated pipes, electrical conduits, and cable protection tubes. Our compound delivers the precise combination of high ring stiffness, impact resistance, and flame retardancy that corrugated pipe manufacturers demand.
Designed for double-wall and single-wall corrugated extrusion lines, our compound produces pipes with consistent wall thickness, smooth inner surfaces, and excellent corrugation definition. Available in black, white, grey, and custom colors. Two grade series available: SB-CW for electrical conduit and SB-CD for drain hose applications.
· Specification
Small Boss| Parameter | Value |
|---|---|
| Product Name | PVC Compound for Corrugated Pipe |
| Material Type | Rigid PVC (UPVC) Extrusion Grade |
| Application | Corrugated Pipes, Electrical Conduit, Cable Protection, Drain Hoses |
| Grade Series | SB-CW (Electrical Conduit) | SB-CD (Drain Hose) |
| Hardness | Shore D 73±3 |
| Density | 1.38-1.45 g/cm3 |
| Tensile Strength | ≥ 38 MPa |
| Flexural Strength | ≥ 45 MPa |
| IZOD Impact Strength | ≥ 60 J/m |
| Ring Stiffness | SN4 / SN8 Rated |
| Dielectric Strength | > 20 kV/mm |
| Flame Rating | UL 94 V-0 |
| UV Resistance | Yes (UV-Stabilized) |
| Low-Temperature Impact | No cracking at -15°C |
| Service Temperature | -15°C to +65°C |
| Processing Temperature | 160-190°C |
| Standard Colors | Black, White, Grey + Custom |
| Certifications | SGS, Intertek, Bureau Veritas Verified |
· Advantage
Small Boss🔶Low Ring Stiffness & Pipe Deformation
High-rigidity formulation maintains shape under compression and impact. SN4/SN8 ring stiffness achieved consistently.
🔶Surface Dullness & Poor Gloss
High-gloss compound delivers uniform surface finish every production run. Optimized processing aids ensure smooth corrugation definition.
🔶Flame Retardant Failure
UL 94 V-0 flame retardant system ensures self-extinguishing, no drip. Passes inspection every time.
🔶Brittle Fracture at Low Temperature
Low-temperature toughened formulation resists cracking down to -15°C. CPE/acrylic impact modifiers ensure flexibility in cold conditions.
🔶Proven Quality Control
Every batch undergoes rigorous QC testing including mechanical properties, dimensional stability, and color consistency. Our ISO-certified lab ensures compound performance matches specifications batch after batch.
· Application

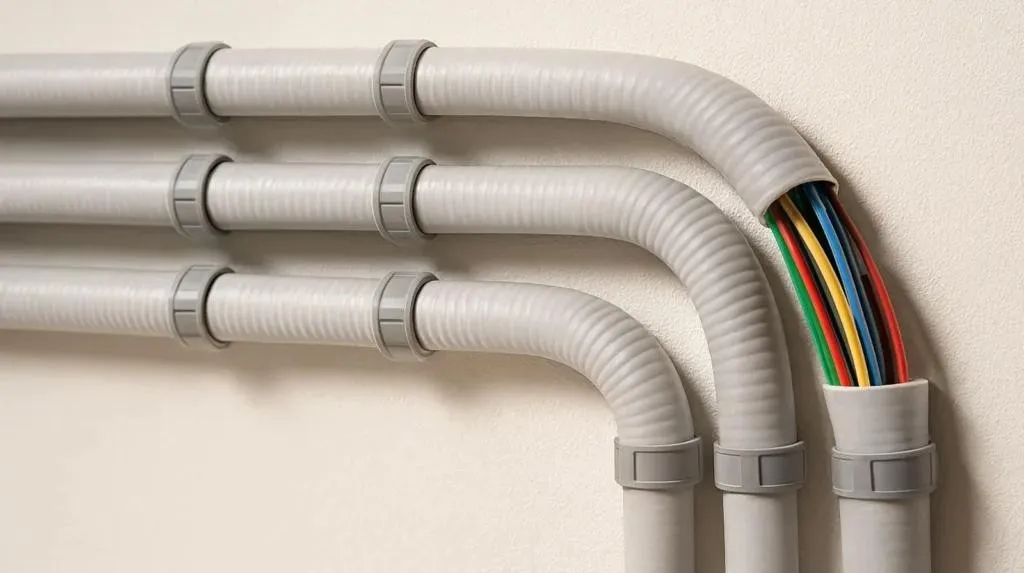

Small Boss🔶Electrical Conduit & Wiring Protection
Corrugated electrical conduit for residential and commercial cable protection.

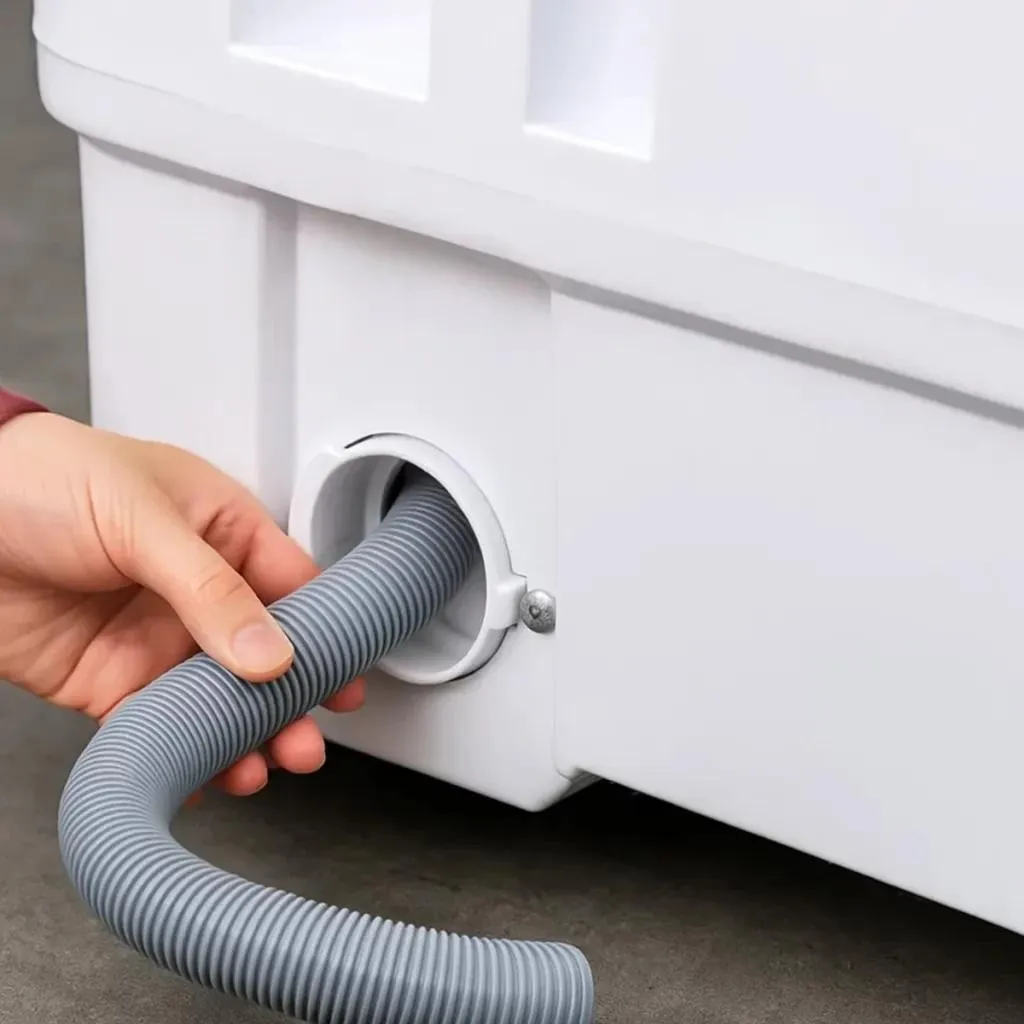

🔶Washing Machine Drain Hose
Flexible corrugated drain hoses for appliance drainage systems.

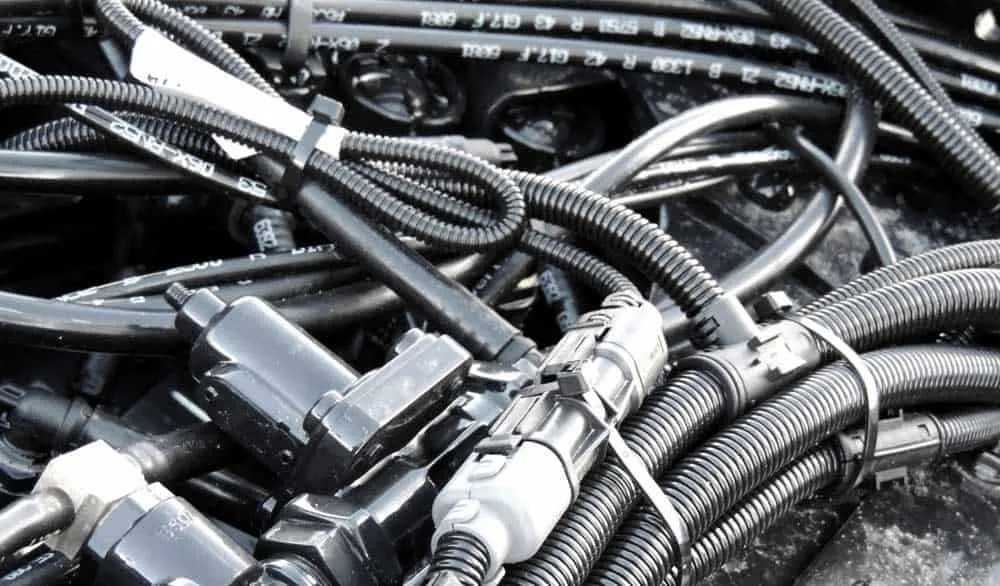

🔶Automotive Wiring Harness
Corrugated tubing for protecting automotive wire harnesses and cables.
🔶Building & Construction
Underground drainage and cable protection pipes for infrastructure projects.
🔶Specialty Profiles
Custom extruded profiles for specialized applications in industrial and commercial settings.
🔶Custom Formulations
Tailored compounds developed to meet specific customer requirements for hardness, color, and processing characteristics.
Electrical Conduit & Wiring Protection
Automotive Wiring Harness
Specialty Profiles
· Why Choose Us
Small BossTongxiang Small Boss Special Plastic Products Co., Ltd. is a professional PVC compound manufacturer with 30+ years of experience in PVC modification technology. Headquartered in Tongxiang, Zhejiang Province, China, we specialize in developing and producing high-performance PVC compounds for various applications including corrugated pipes, cable management, construction, automotive, and industrial products.
Our production facility features 120+ extrusion lines with an annual capacity of 72,000 metric tons. We export to 100+ countries worldwide and maintain long-term partnerships with leading manufacturers in Europe, Americas, Southeast Asia, and the Middle East.
As an ISO-certified manufacturer, we maintain rigorous quality control systems. Our products are tested and verified by international third-party laboratories including SGS, Intertek, and Bureau Veritas.
30+ Years Experience
PVC Modification Technology
72,000 MT/Year
Production Capacity
100+ Countries
Global Export Coverage
OEM/ODM Available
Custom Formulations
Ready to Upgrade Your Corrugated Pipe Compound Supply Chain?
Get Free Samples & Technical Consultation
Email: zt02@smallboss.com | Website: www.ztsmallboss.com
