Spiral MBBR Biofilm Carrier

Aqwise-authorized spiral MBBR carrier. Patented open structure delivers 650–800 m²/m³ surface area with clog-resistant self-cleaning action and superior oxygen transfer.

Virgin HDPE, 10+ year service life. Proven in 100+ countries for municipal, RAS aquaculture and industrial wastewater treatment.

Aqwise-authorized spiral MBBR carrier. Patented open structure delivers 650–800 m²/m³ surface area with clog-resistant self-cleaning action and superior oxygen transfer.

Virgin HDPE, 10+ year service life. Proven in 100+ countries for municipal, RAS aquaculture and industrial wastewater treatment.

Contact Now

Previous: Bio Media PE64s for RAS

Next: Bio Media PE04 for RAS

▎Products Description

★ Aqwise Authorized Manufacturer ★

Licensed by Aqwise Wise Water Technologies (Israel) — the original inventor of spiral MBBR carrier technology.

This is the genuine spiral design, backed by decades of global project experience and proprietary process know-how.

· Specification

Small Boss

Parameter	Standard Model
Dimensions (Dia. × H)	Ø13 × 13 mm
Surface Area	650–800 m²/m³
Material	Virgin HDPE
Density	0.94–0.98 g/cm³
Fill Ratio	20–55% (Typical 50%)
Biofilm Formation	3–15 days
Service Life	>10 years
Operating Temperature	5–45 °C
Certifications	ISO9001, SGS, REACH, RoHS

· Advantage

Small Boss

🔶Fully Open External Design

Unlike closed wheel-type carriers, the spiral open structure creates turbulent micro-currents inside the carrier. This ensures oxygen and nutrients reach every biofilm layer — biofilm-to-surface distance is only 0–3 mm across the entire media.

🔶Clog-Resistant & Self-Cleaning

The open geometry prevents debris accumulation and biofilm overgrowth blockage. Ideal for high-TSS wastewater, scaling-prone environments, and industrial applications where conventional media fails.

🔶Superior Oxygen Transfer Efficiency

Patented double-roll airflow design generates optimized air-water mixing patterns. Achieves higher oxygen utilization with lower aeration energy — reducing OPEX for plant operators.

🔶Rapid Biofilm Colonization

Hydrophilic surface treatment and trace element integration enable biofilm attachment within 3–15 days. Proven by academic research with Anammox and nitrifying bacteria — stable colonization from day 85 in deammonification systems.

🔶Shock Load Resilience

The protected internal surface area maintains biofilm integrity during hydraulic surges and toxic shock events. Short recovery time after upset conditions — critical for industrial wastewater with variable influent quality.

🔶Versatile Process Compatibility

One carrier, multiple processes: Aerobic MBBR, IFAS hybrid, Anoxic denitrification, Anaerobic treatment. Works in municipal, industrial, aquaculture RAS, and groundwater remediation applications.

· Application

Small Boss

🔶Municipal WWTP

BOD/COD & TN removal, plant upgrade & expansion.

🔶RAS Aquaculture

Nitrification biofilter for salmon, shrimp, tilapia.

🔶Industrial Wastewater

Food & beverage, pharmaceutical, petrochemical.

🔶Groundwater Denitrification

Nitrate removal for drinking water safety.

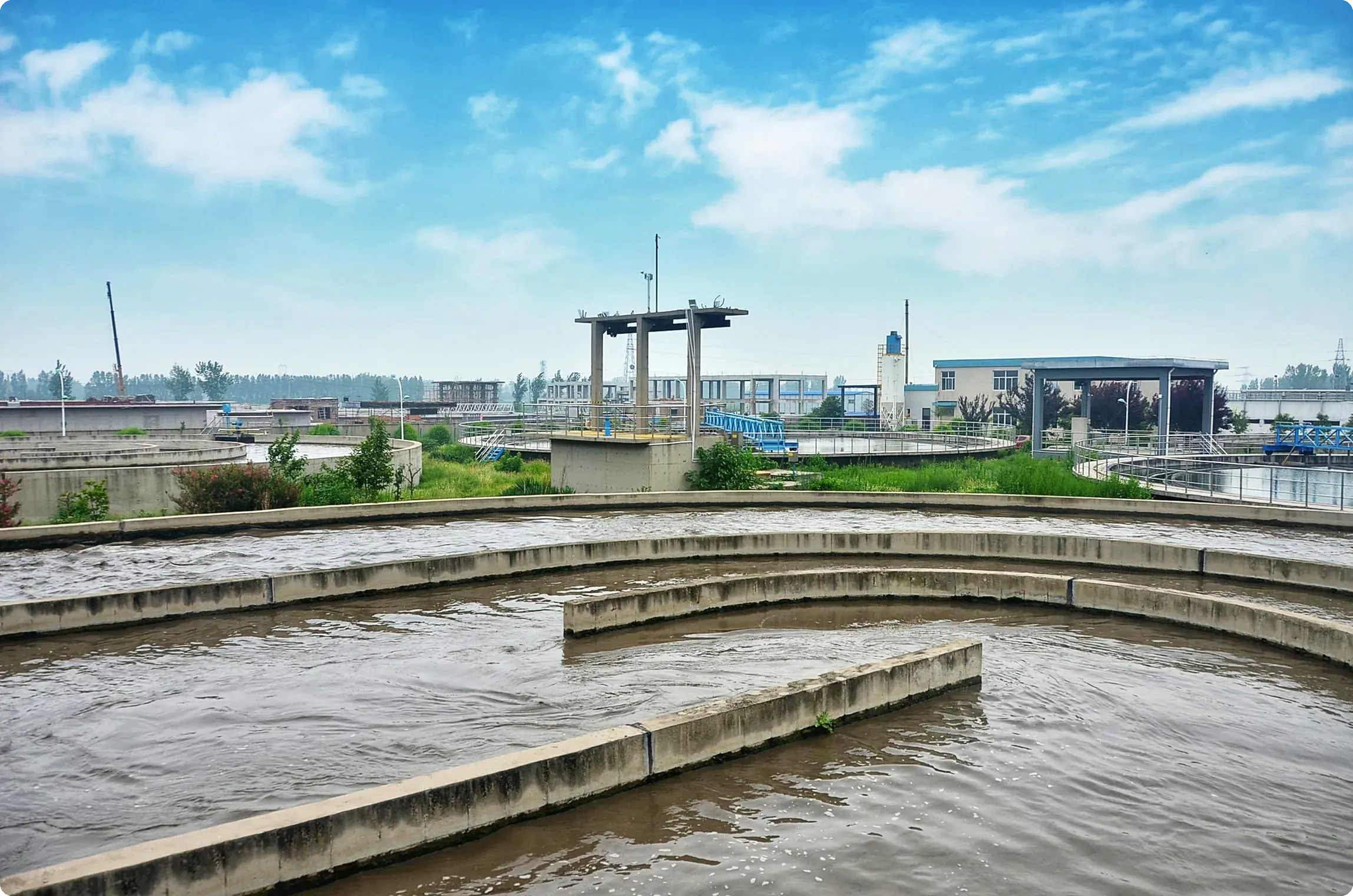

Municipal WWTP

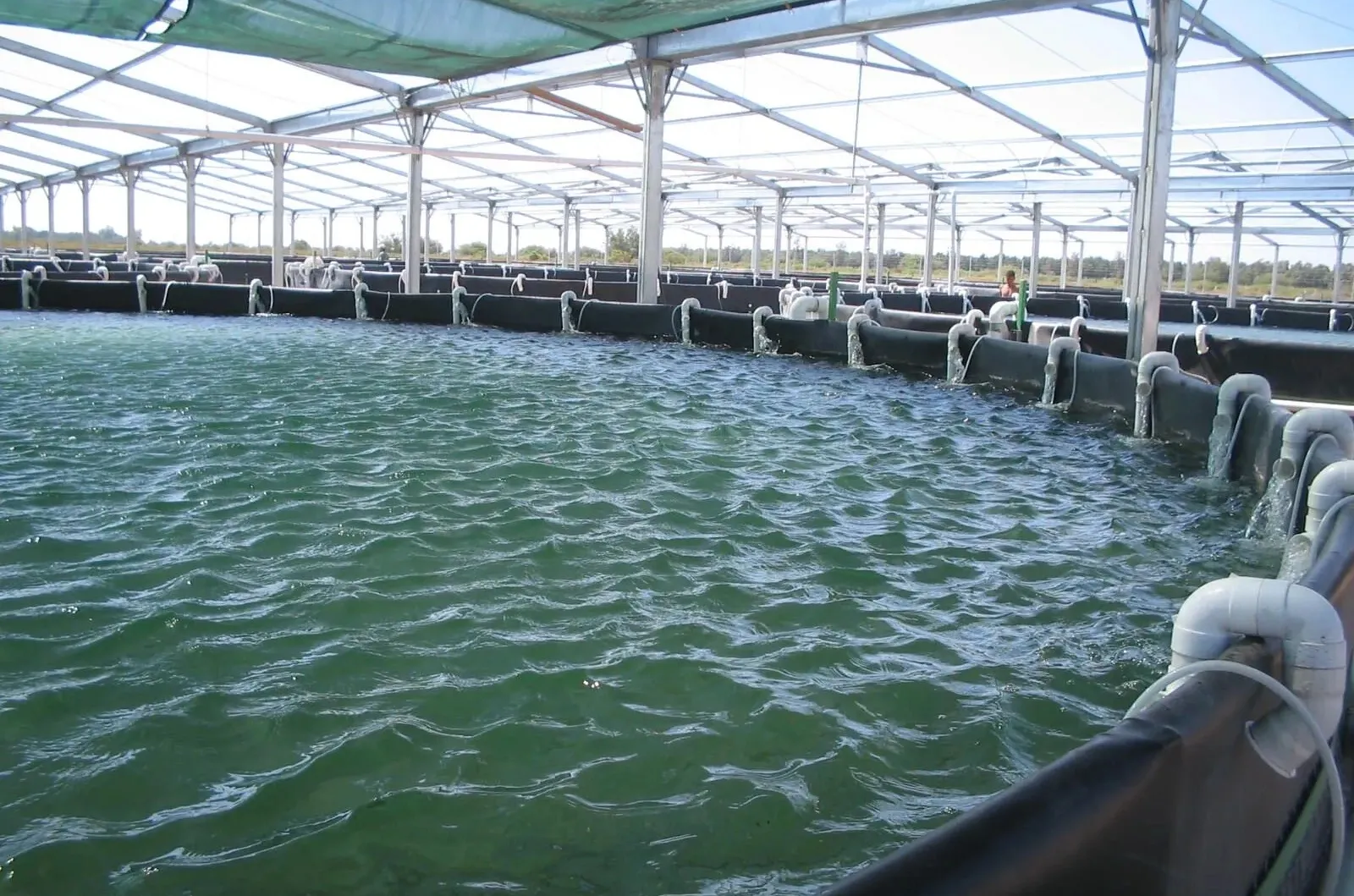

RAS Aquaculture

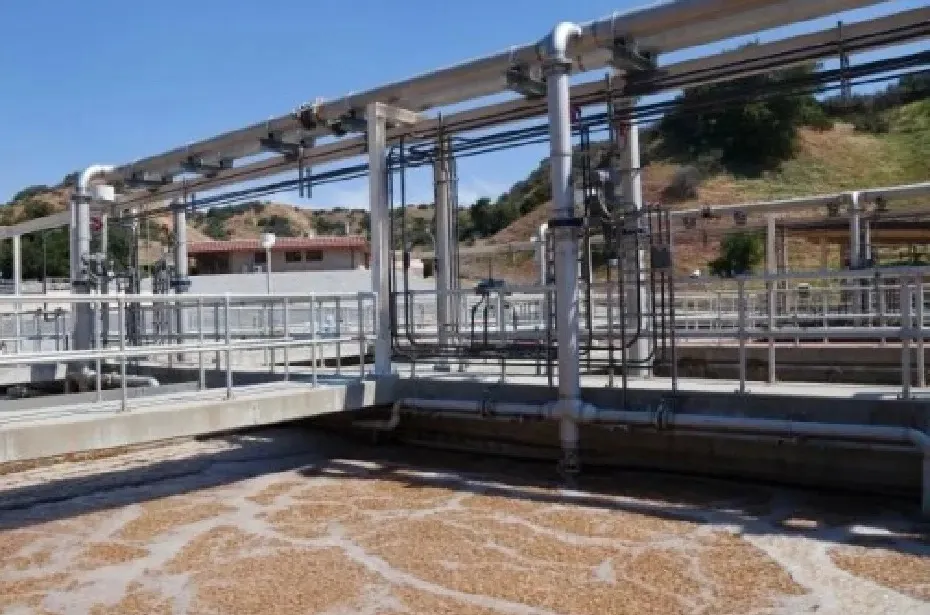

Industrial Wastewater

· Why Choose Us

Small Boss

🔶Smallboss R&D: From Formula to Performance

Full in-house development — not just a plastic molding factory. We control every step from polymer formulation to process engineering.

POLYMER SCIENCE Bio-Affinity Formulation	FLUID DYNAMICS CFD-Optimized Geometry	PROCESS DESIGN Application Engineering
Proprietary HDPE compound with hydrophilic groups and trace elements that accelerate microbial adhesion. Each carrier batch undergoes surface energy testing to ensure consistent biofilm compatibility.	Spiral structure designed using computational fluid dynamics to maximize turbulent mixing and minimize dead zones. Validated in pilot-scale reactors across municipal and industrial applications.	We don't just sell carriers — we help design the process. Our engineers provide reactor sizing, carrier fill ratio calculations, and aeration system recommendations for your specific project conditions.

137 National Patents	2 International Patents	5+ University Partners

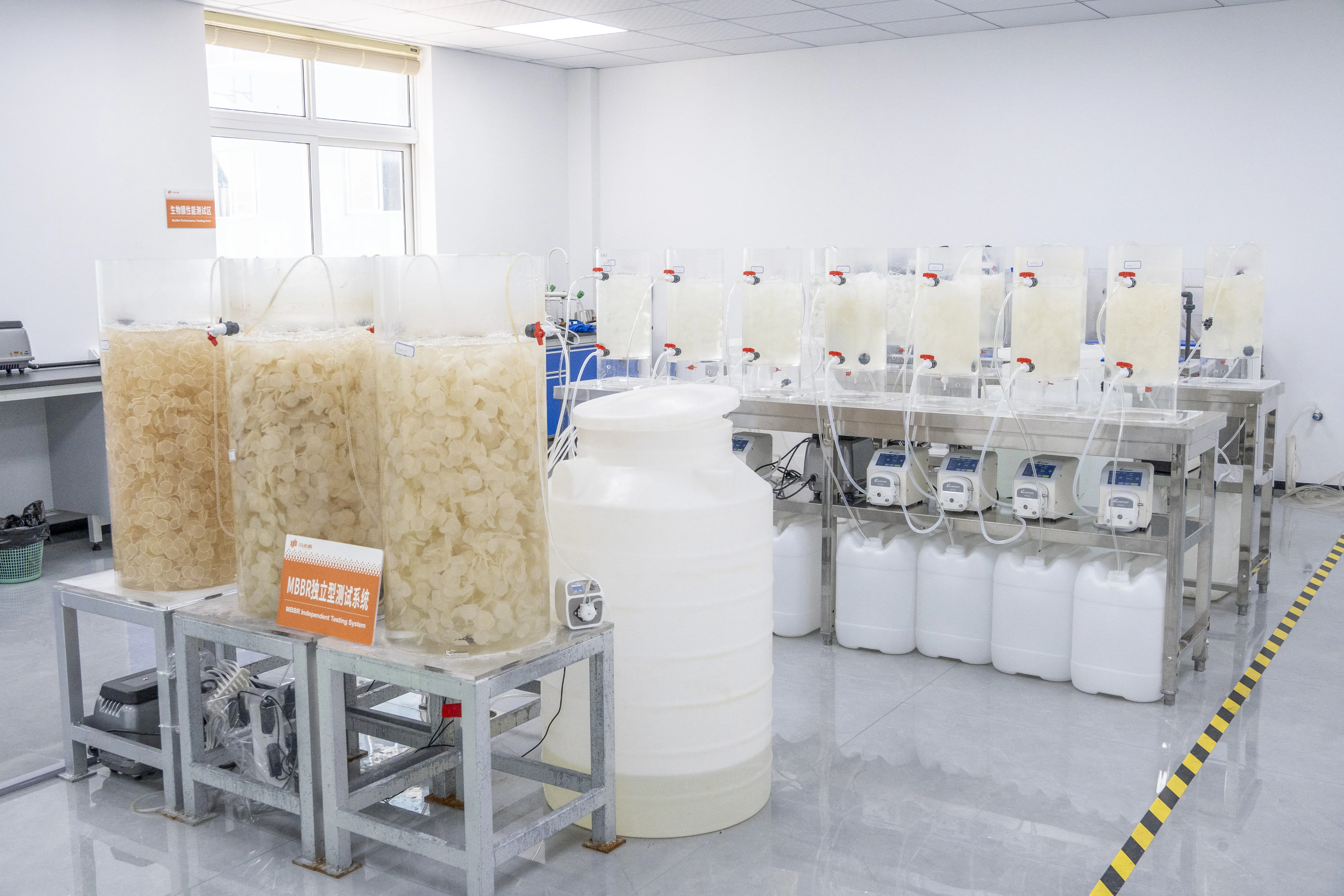

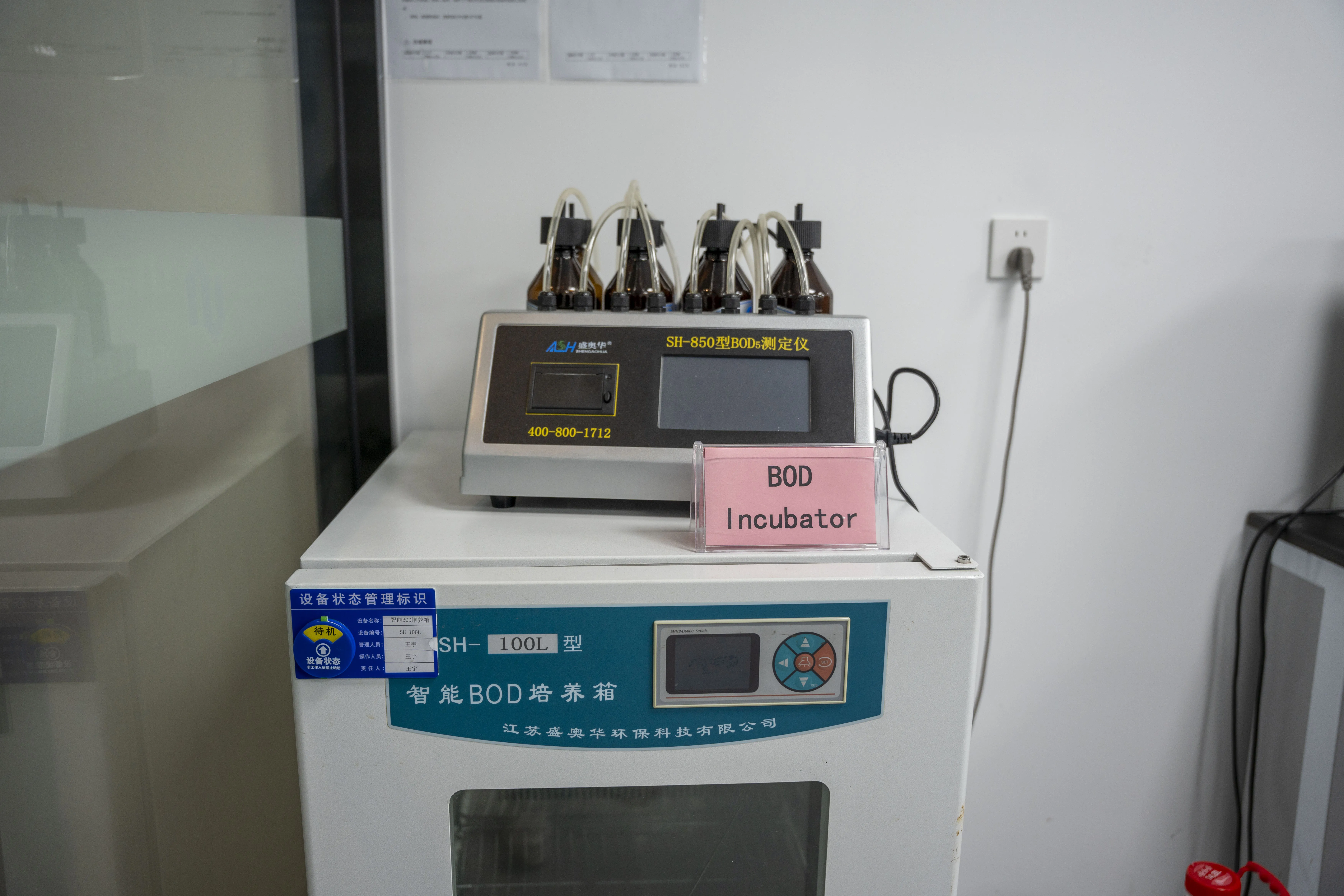

Small Boss laboratory: biofilm cultivation testing and BOD analysis

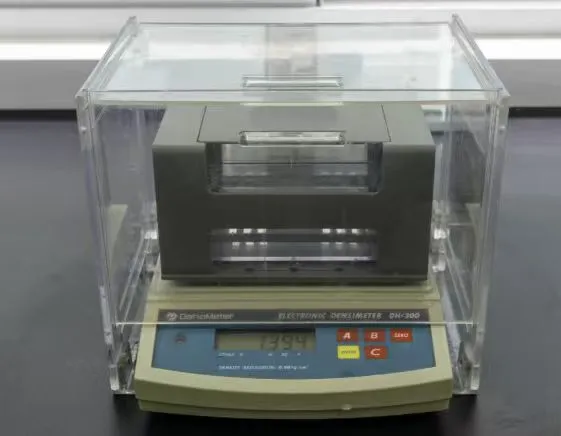

Small Boss laboratory: R&D team and precision testing equipment

🔶Vertical Integration — Full Chain Control

From raw material compounding to mold development, production, cutting, and packaging — 122 high-speed production lines running 100% in-house. No outsourcing, no quality variance.

🔶Industry Standard Setter

Formulation unit of HG/T 5924-2021 — China's national industry standard for "Biofilm Carriers for Waste (Sewage) Treatment". We define the quality benchmark that others follow.

🔶National "Little Giant" Enterprise

Recognized by China's Ministry of Industry as a national high-tech enterprise and "Little Giant" — the highest honor for specialized SMEs. ISO 9001 / 14001 / 45001 certified.

🔶Global Track Record

320+ projects delivered, 100+ countries served. Europe is our largest export market. Trusted by leading RAS operators, municipal utilities, and industrial wastewater EPCs worldwide.

🔶University-Backed Innovation

Long-term R&D partnerships with Zhejiang University, Hohai University, Xi'an Jiaotong University, Hubei University of Technology. Academic rigor meets industrial scale.

🔶Competitive Factory Pricing

Direct from our 68,000 m² facility in Tongxiang — no middleman, no trading company markup. FOB Shanghai/Ningbo, daily output 600+ m³, fast delivery guaranteed.

· Spiral vs Conventional

Small Boss

See the difference open structure makes

Feature	Spiral Open Structure	Wheel-Type (K1/K3 Style)
Structure	✅ Fully open — no dead zones	⚠️ Closed wheel — internal dead zones
Clogging Risk	✅ Extremely low — self-cleaning	⚠️ Moderate — prone to biofilm overgrowth
O₂ Transfer Efficiency	✅ Superior — 0–3 mm biofilm distance	⚠️ Limited — deeper biofilm layers
High-TSS Tolerance	✅ Excellent — open flow paths	⚠️ Can trap solids internally
Aeration Energy	✅ Lower — better airflow design	⚠️ Higher mixing energy needed
Shock Load Recovery	✅ Fast — protected biofilm retains	⚠️ Slower — biofilm can slough off

· FAQ

Small Boss

🔶What makes this different from K1/K3 carriers?

A: The spiral open structure eliminates internal dead zones where biofilm overgrows and clogs conventional wheel-type carriers. Aqwise's original design provides superior oxygen transfer, self-cleaning action, and 30%+ more effective surface area.

🔶What is the minimum order quantity (MOQ)?

A: 1 m³ for sample/trial orders. Standard orders start from 5 m³ with volume pricing available for 20+ m³.

🔶What is the typical lead time?

A: 7-10 days for standard orders. 15-20 days for custom specifications. We maintain 230+ m³/day production capacity.

🔶Do you provide free samples?

A: Yes. We provide free 1-2 kg samples with technical datasheet. Customer covers shipping cost only.

🔶What fill ratio should I use?

A: Typical fill ratio is 30-50% depending on application. Municipal: 40-50%. RAS aquaculture: 30-40%. Industrial: 35-50%. Our engineers can calculate the optimal ratio for your specific project.

🔶How does the 10-year warranty work?

A: We guarantee structural integrity for 10+ years under normal operating conditions (5-45℃, pH 5-10). The HDPE material is UV-stabilized and resistant to biological degradation.
