Lamella Tube Settler Media for Wastewater Treatment

PP lamella tube settler media in 30/50/80mm specifications with a 60° dip angle, 0.5-1.3mm wall thickness and two stated module formats for wastewater clarification.

Contact Now

Previous: No more data

Next: No more data

▎Products Description

Small Boss

HG/T 5924-2021 Industry Standard Formulation Unit | ISO 9001 / 14001 / 45001 | Project-Specific MBBR Selection Support

LamellaPRODUCT

30/50/80mmSPECIFICATION

60°DIP ANGLE

0.5-1.3mmWALL THICKNESS

Technical Specifications

Product	Lamella tube settler media
Material	PP
Specifications	30 / 50 / 80mm
Dip Angle	60°
Module Sizes	1000×1000×866mm / 1000×500×866mm
Wall Thickness	0.5-1.3mm
Quantity	40/30/20 pcs/m³
Color	White
Stated Service Life	>15 years

Product Advantages

Three Channel Options

The stated 30/50/80mm specifications allow selection around solids characteristics and hydraulic loading.

Standard 60-Degree Angle

The stated 60° inclination supports solids sliding and compact clarification layouts.

Two Module Formats

The stated 1000×1000×866mm and 1000×500×866mm formats support tank layout planning.

PP Construction

The current page identifies PP material and a 0.5-1.3mm wall-thickness range.

Application Scenarios

Secondary Clarification

Use in sedimentation tanks after hydraulic loading and solids-settling characteristics are confirmed.

Industrial Pretreatment

Evaluate for solids separation before biological or advanced treatment stages.

Compact Sewage Systems

Consider where increased projected settling area is required within a limited tank footprint.

Water Treatment Clarifiers

Assess for clarification duties based on particle characteristics, temperature and design flow.

Application Reference Gallery

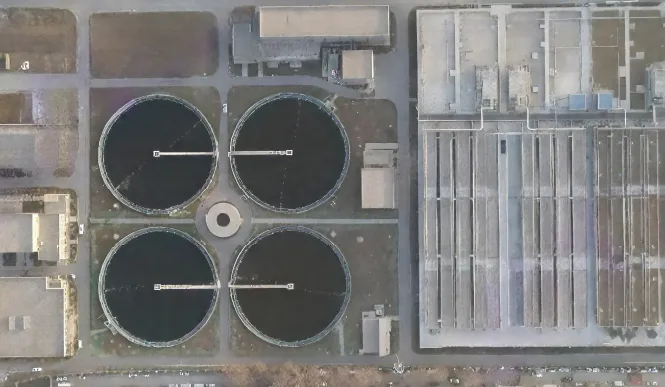

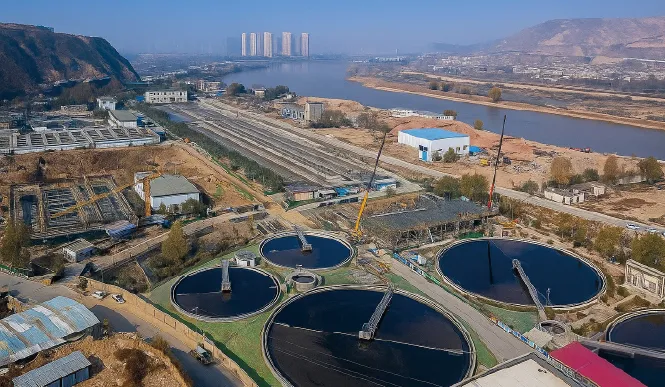

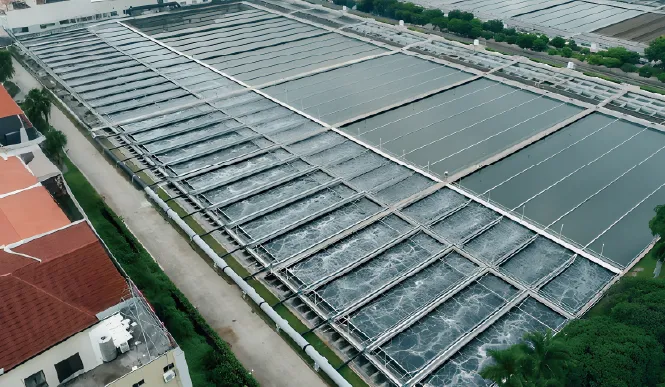

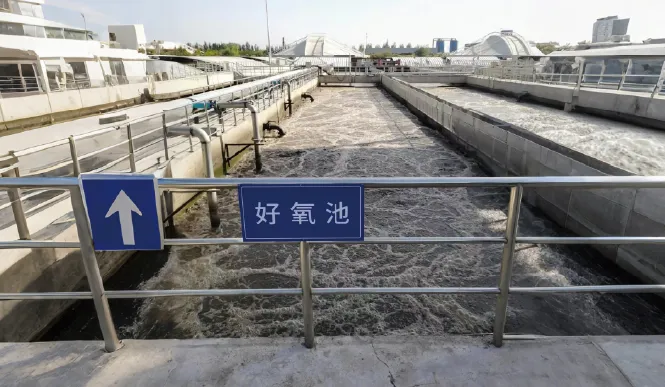

Real project photographs relevant to this product category. Final suitability depends on confirmed water quality, solids, loading, hydraulics and operating conditions.

Why Choose Small Boss

From Material Formulation to Process Support

Small Boss combines carrier manufacturing, laboratory evaluation and project-specific process selection. Stated product data is separated from parameters that still require engineering confirmation.

In-House Production and Delivery

One-Stop MBBR Process Service

Support can include model screening, reactor sizing, aeration and mixing review, retention or support design, packing guidance and project delivery.

Small Boss one stop MBBR product and application process

Engineering Selection Guide

Channel size	Select 30, 50 or 80mm around solids size, fouling risk and cleaning access.
Hydraulic loading	Confirm surface overflow rate, peak flow and inlet/outlet distribution.
Support structure	Design module support and installation clearances for the selected module size.
Maintenance	Provide access for inspection, flushing and solids removal below the media.

Related MBBR Product Range

Compare related products or view the complete MBBR product range. Final selection requires confirmed water quality, loading, reactor and hydraulic data.
