SJ95 PVC Sheet Pile Connector for SU718 Corners and Transitions

SJ95 is the connector listed for compatible SU718 wall transitions and corner details. The latest catalog gives a 70 mm section width, 95 mm section height and 10 mm thickness; these labels correct the reversed width/height presentation on the old page.

SJ95 is the connector listed for compatible SU718 wall transitions and corner details. The latest catalog gives a 70 mm section width, 95 mm section height and 10 mm thickness; these labels correct the reversed width/height presentation on the old page.

face-book3 Created with Sketch.
linkedln3 Created with Sketch.
Previous: No more data

▎Products Description

Engineered PVC Sheet Piling

SJ95 Engineering Overview

SJ95 is the connector listed for compatible SU718 wall transitions and corner details. The latest catalog gives a 70 mm section width, 95 mm section height and 10 mm thickness; these labels correct the reversed width/height presentation on the old page.

70 mmSection width
95 mmSection height
10 mmSection thickness
SU718 system (confirm latest drawing)Compatibility
Technical data

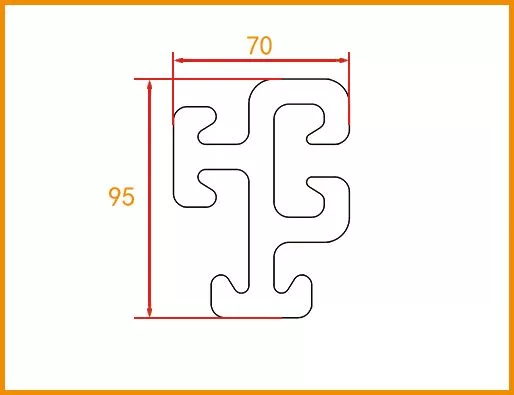

Profile Drawing and Verified Technical Data

SJ95 PVC sheet pile profile
70 mmSection width95 mmSection height10 mmSection thickness

SJ95 is positioned as a SU718 corner and transition connector. Dimensions, section properties and design-reference values are provided below as searchable HTML rather than image-only content.

Section width 70 mm
Section height 95 mm
Section thickness 10 mm
Compatibility SU718 system (confirm latest drawing)

Engineering notice: Catalog values support model comparison and preliminary discussion. Final wall capacity, pile length, embedment, bracing, interlock treatment and installation method require project-specific structural and geotechnical design.

Application focus

Where This Model Fits

Corners

Use only where the connector orientation matches the engineered corner geometry.

Wall transitions

The layout should identify each transition and the corresponding connector length before ordering.

Connection control

Interlock engagement, verticality and joint condition must be checked during installation.

System design

PVC Sheet Pile System Advantages

No steel rusting

Rigid PVC does not oxidize like carbon steel in wet or marine exposure. Chemical compatibility, UV exposure and temperature still need project review.

Continuous interlocking wall

Interlocking profiles create a continuous barrier. Watertight performance depends on the selected joint, sealing detail, installation quality and leakage criterion.

Efficient handling

PVC profiles are comparatively light to handle. Actual lifting, driving equipment and productivity depend on pile length, soil, access and guide-frame design.

Method selection

Installation Planning by Pile and Ground Condition

1

Short piles

The catalog recommends excavator pressing or a small vibratory hammer for rapid installation where ground conditions permit.

2

Medium or long piles

Use a pneumatic hammer or light vibrator after drivability, alignment and profile protection are considered.

3

More than 4 m

Coordinate a custom steel driving guide or sleeve that fits the profile. Control verticality and interlock engagement throughout installation.

Field applications

Application Reference Gallery

These photographs show genuine sheet pile construction environments relevant to the product category. They illustrate application context rather than claiming that every photographed project used this exact model; final profile selection requires project data and engineering review.

PVC sheet pile application - Urban Riverbank Revetment

Urban Riverbank Revetment

A clean shoreline edge for water management and landscape integration.

PVC sheet pile application - Riverbank Sheet Pile Installation

Riverbank Sheet Pile Installation

Driven wall installation beside an existing waterway where access and alignment control matter.

PVC sheet pile application - Landscape Shoreline Protection

Landscape Shoreline Protection

Bank stabilization where corrosion resistance and a neat finished line are valued.

Company evidence

Manufacturing and Quality-Control Basis

1992Manufacturing origin; legal company registered in 2002
64,313.88 m²Certified building area
150+ linesProduction and pilot lines across company categories
12,000+ t/monthCompany-wide combined monthly capacity; not a model-specific output claim
350+ staffAs of August 5, 2026; R&D personnel exceed 30%
73 + 4 patentsValid domestic + valid international patents as of July 2026
Management and standards: Management systems certified to ISO 9001, ISO 14001 and ISO 45001. Participant in HG/T 5924-2021 and T/CSPSTC 180-2025, the Technical Specification for Application of Plastic Sheet Piles.
Project input

Information Needed for Selection and Quotation

  • Wall length, pile length, exposed height and retained height
  • Design water levels, flood level, drawdown and leakage-control target
  • Soil profile, groundwater, slope, surcharge and seismic requirements
  • Required design life, applicable code and engineer's design actions
  • Installation access, headroom, equipment and guide-frame constraints
  • Wall alignment, curves, corners, caps, connectors and terminations
  • Colour, finish, packaging, delivery destination and required documents
  • Reference MOQ for profiles is 1,000 m; the final MOQ depends on specification, colour, tooling and the confirmed order.
FAQ

SJ95 Technical FAQ

What project information is required to select SJ95?

Provide wall length, pile length, exposed and retained heights, design water levels, soil profile, groundwater, surcharge, target leakage control, design life, installation access and applicable code. Final selection requires project-specific structural and geotechnical review.

Which sheet pile does SJ95 match?

SU718 system (confirm latest drawing). Compatibility must be checked against the latest approved drawing before ordering.

Can SJ95 be installed with an excavator?

The catalog recommends excavator pressing or a small vibratory hammer for short piles. Medium or long piles and difficult soils may require a pneumatic hammer or light vibrator. Piles longer than 4 m or adverse conditions may need a custom steel driving guide.

What is the reference MOQ for PVC profiles?

The current company reference MOQ for profiles is 1,000 m. Specification, colour, tooling, packaging and the confirmed order can change the final MOQ.

Internal links

Related PVC Sheet Pile Profiles and Accessories

SU718: U profilewide flood-protection and river-revetment profileSG216: cap accessorySU718 wall-top finishing accessorySU525: U profileeco-revetment and landscape shoreline profile
River bank protection and regulation Flood protection structures Retaining wall
Marine structures Embankment works Ersosion control
Water control solutions Mat high dams Cut-off system











Automatic Production lines:

The high-speed production line guarantees a monthly output around 25,000 meters,it means we only need 10 days to complete a 40HQ container production.



Store:

Use pallets to keep the sheet pile from being under heavy pressure when stacked, and use rain cloth to prevent extreme weather from affecting the sheet pile.



Loading:

The use of tools such as forklifts makes the

container loading process convenient and efficient
