SU718 PVC Sheet Pile for Flood Protection and River Revetment

Q: What is the reference MOQ for PVC profiles?

The current company reference MOQ for profiles is 10,000 m. Specification, colour, tooling, packaging and the confirmed order can change the final MOQ.

SU718 is a 718 mm wide, 180 mm deep U-profile PVC sheet pile with 9 mm, 10 mm and 11 mm options. It is the core wide U-profile for flood protection, river revetment and water-control projects, with SJ95 connector and SG216 cap accessories available for system detailing.

Contact Now

Previous: SU457 PVC Sheet Pile for Small Watershed and Landscape Revetment

Next: SF626 Double-Seal PVC Sheet Pile for Cutoff and Seepage Control

▎Products Description

Engineered PVC Sheet Piling

SU718 Engineering Overview

718 mmSection width

180 mmSection depth

9 / 10 / 11 mmAvailable wall thickness

U profileProfile family

Technical data

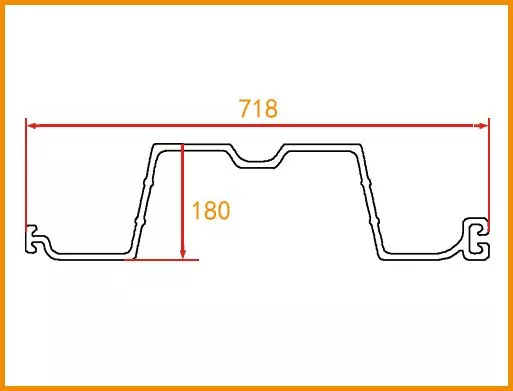

Profile Drawing and Verified Technical Data

718 mmSection width shown in drawing180 mmSection depth9 / 10 / 11 mmAvailable wall thickness

SU718 is positioned as a wide flood-protection and river-revetment profile. Dimensions, section properties and design-reference values are provided below as searchable HTML rather than image-only content.

Property	Option 1	Option 2	Option 3
Section width	718 mm	718 mm	718 mm
Section depth	180 mm	180 mm	180 mm
Wall thickness	9 mm	10 mm	11 mm
Moment of inertia per pile	5350 cm⁴	5787 cm⁴	6203 cm⁴
Section modulus per pile	574 cm³	595 cm³	644 cm³
Ultimate moment per pile	35 kN·m	38 kN·m	42 kN·m
Ultimate shear per pile	69 kN	76 kN	84 kN
Catalog design reference moment per pile	25 kN·m	27 kN·m	29 kN·m
Catalog design reference shear per pile	48 kN	53 kN	58 kN
Effective width	0.691 m	0.691 m	0.691 m
Flexural strength	≥65 MPa
Tensile strength	≥45 MPa
Shear strength	≥26 MPa
Elastic modulus	≥2600 MPa

Engineering notice: Catalog values support model comparison and preliminary discussion. Final wall capacity, pile length, embedment, bracing, interlock treatment and installation method require project-specific structural and geotechnical design.

Application focus

Where This Model Fits

Flood protection

Three thickness options allow preliminary comparison against the design moment and shear demand before detailed engineering.

River revetment

The wide U profile can be evaluated for long riverbank walls where vertical alignment, interlock fit and embedment are controlled.

System detailing

SJ95 connectors and SG216 caps support designed transitions and terminations; quantities must follow the wall layout.

System design

PVC Sheet Pile System Advantages

No steel rusting

Rigid PVC does not oxidize like carbon steel in wet or marine exposure. Chemical compatibility, UV exposure and temperature still need project review.

Continuous interlocking wall

Interlocking profiles create a continuous barrier. Watertight performance depends on the selected joint, sealing detail, installation quality and leakage criterion.

Efficient handling

PVC profiles are comparatively light to handle. Actual lifting, driving equipment and productivity depend on pile length, soil, access and guide-frame design.

Method selection

Installation Planning by Pile and Ground Condition

Short piles

The catalog recommends excavator pressing or a small vibratory hammer for rapid installation where ground conditions permit.

Medium or long piles

Use a pneumatic hammer or light vibrator after drivability, alignment and profile protection are considered.

More than 4 m

Coordinate a custom steel driving guide or sleeve that fits the profile. Control verticality and interlock engagement throughout installation.

Field applications

Application Reference Gallery

These photographs show genuine sheet pile construction environments relevant to the product category. They illustrate application context rather than claiming that every photographed project used this exact model; final profile selection requires project data and engineering review.

Urban Riverbank Revetment

A clean shoreline edge for water management and landscape integration.

Riverbank Sheet Pile Installation

Driven wall installation beside an existing waterway where access and alignment control matter.

Landscape Shoreline Protection

Bank stabilization where corrosion resistance and a neat finished line are valued.

Company evidence

Manufacturing and Quality-Control Basis

1992Manufacturing origin; legal company registered in 2002

64,313.88 m²Certified building area

150+ linesProduction and pilot lines across company categories

12,000+ t/monthCompany-wide combined monthly capacity; not a model-specific output claim

350+ staffAs of August 5, 2026; R&D personnel exceed 30%

73 + 4 patentsValid domestic + valid international patents as of July 2026

Management and standards: Management systems certified to ISO 9001, ISO 14001 and ISO 45001. Participant in HG/T 5924-2021 and T/CSPSTC 180-2025, the Technical Specification for Application of Plastic Sheet Piles.

Project input

Information Needed for Selection and Quotation

Wall length, pile length, exposed height and retained height
Design water levels, flood level, drawdown and leakage-control target
Soil profile, groundwater, slope, surcharge and seismic requirements
Required design life, applicable code and engineer's design actions

Installation access, headroom, equipment and guide-frame constraints
Wall alignment, curves, corners, caps, connectors and terminations
Colour, finish, packaging, delivery destination and required documents
Reference MOQ for profiles is 1,000 m; the final MOQ depends on specification, colour, tooling and the confirmed order.

FAQ

SU718 Technical FAQ

What project information is required to select SU718?

Provide wall length, pile length, exposed and retained heights, design water levels, soil profile, groundwater, surcharge, target leakage control, design life, installation access and applicable code. Final selection requires project-specific structural and geotechnical review.

Are the catalog design moment and shear values final project capacities for SU718?

No. They are catalog design reference values per pile for model comparison. The project engineer must verify load combinations, soil-structure interaction, embedment, bracing, joints, durability and installation effects.

Can SU718 be installed with an excavator?

The catalog recommends excavator pressing or a small vibratory hammer for short piles. Medium or long piles and difficult soils may require a pneumatic hammer or light vibrator. Piles longer than 4 m or adverse conditions may need a custom steel driving guide.

What is the reference MOQ for PVC profiles?

The current company reference MOQ for profiles is 1,000 m. Specification, colour, tooling, packaging and the confirmed order can change the final MOQ.

Internal links

Related PVC Sheet Pile Profiles and Accessories


River bank protection and regulation	Flood protection structures	Retaining wall


Marine structures	Embankment works	Ersosion control


Water control solutions	Mat high dams	Cut-off system

Automatic Production lines:

The high-speed production line guarantees a monthly output around 25,000 meters,it means we only need 10 days to complete a 40HQ container production.

Store:

Use pallets to keep the sheet pile from being under heavy pressure when stacked, and use rain cloth to prevent extreme weather from affecting the sheet pile.

Loading:

The use of tools such as forklifts makes the

container loading process convenient and efficient
