PVC Compound for Wire and Cable
Insulation-grade PVC for wire & cable (105°C rated, 10¹² Ω·cm). 30+ yrs mfg. Request samples!
Insulation-grade PVC for wire & cable (105°C rated, 10¹² Ω·cm). 30+ yrs mfg. Request samples!
Previous: PVC Compound for Junction Box
Next: No more data
★ Premium Wire & Cable Compound Supplier ★
30+ Years PVC Modification Technology · ISO Certified Manufacturer
Export to 120+ Countries Worldwide · SGS, Intertek, Bureau Veritas Verified
Product Overview
Small BossSmallBoss PVC Compound for Wire Cables is a flexible PVC compound specifically formulated for manufacturing wire and cable insulation and sheathing.
Available in 70C and 90C rated grades for general-purpose and heat-resistant applications. Our compound delivers excellent electrical insulation, flame retardancy, and long-term aging resistance.
· Specification
Small Boss| Parameter | Value |
|---|---|
| Product Name | PVC Compound for Wire Cables |
| Material Type | Flexible PVC Extrusion Grade |
| Application | Wire & Cable Insulation and Sheathing |
| Hardness | Shore A 88-92 |
| Density | 1.42-1.45 g/cm3 |
| Tensile Strength | >= 12.5 MPa (insulation), >= 11.5 MPa (sheath) |
| Elongation at Break | >= 200% (insulation), >= 180% (sheath) |
| Volume Resistivity | >= 1.0x10^12 Ohm-cm |
| Thermal Stability at 200C | >= 60 min |
| Operating Temperature | 70C or 90C rated |
| Processing Method | Extrusion |
| Processing Temperature | 150-180C |
| Standard Colors | Black, White, Red, Blue, OEM |
| Compliance | IEC 60811, RoHS, REACH |
| Certifications | SGS, Intertek, Bureau Veritas |
· Advantage
Small Boss🔶Insulation Failure
Volume resistivity >=1.0x10^12 Ohm-cm provides superior electrical insulation, preventing current leakage and arc-flash.
🔶Poor Thermal Stability
Thermal stability >=60 min at 200C ensures stable extrusion processing without degradation, discoloration, or gas evolution.
🔶Aging & Cracking
Heat shock test passes (no crack at 150C x 1hr). Low mass loss in aging tests ensures long-term flexibility and crack resistance.
🔶Flame Propagation
Flame retardant grades available with UL94 V-0 equivalent performance, preventing fire propagation along cable installations.
🔶Proven Quality Control
Every batch undergoes rigorous QC testing including mechanical properties, dimensional stability, and color consistency. Our ISO-certified lab ensures compound performance matches specifications batch after batch.
· Application

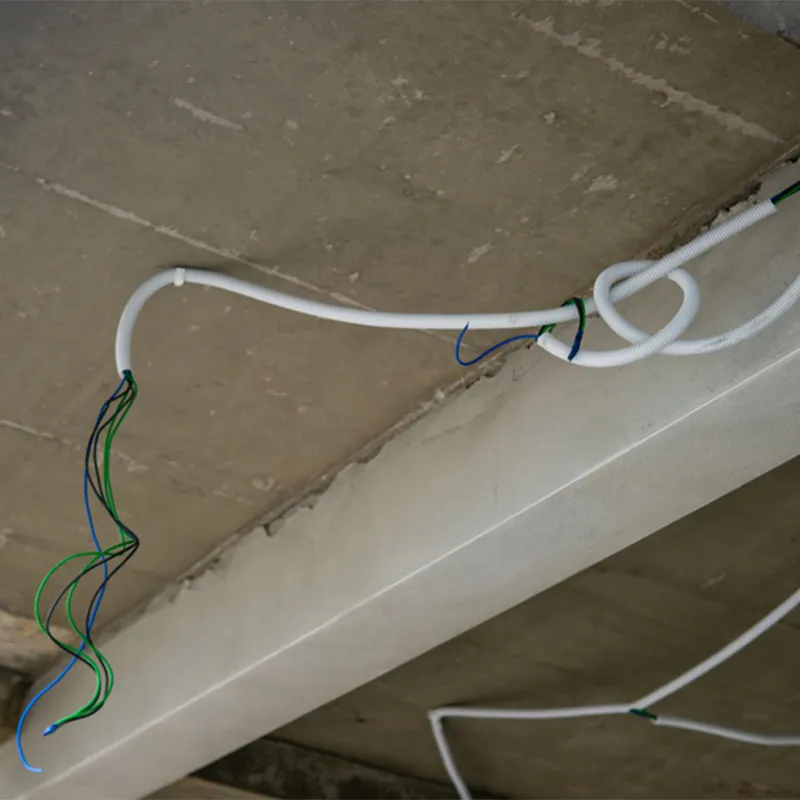

Small Boss🔶Building Wire Insulation
PVC insulation for residential and commercial building wiring -- 70C and 90C rated grades.

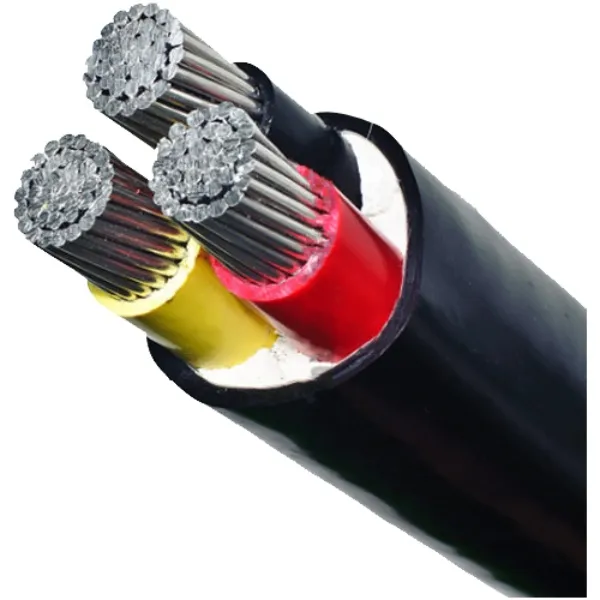

🔶Power Cable Sheathing
Outer sheathing for power cables, providing mechanical protection and flame retardancy.

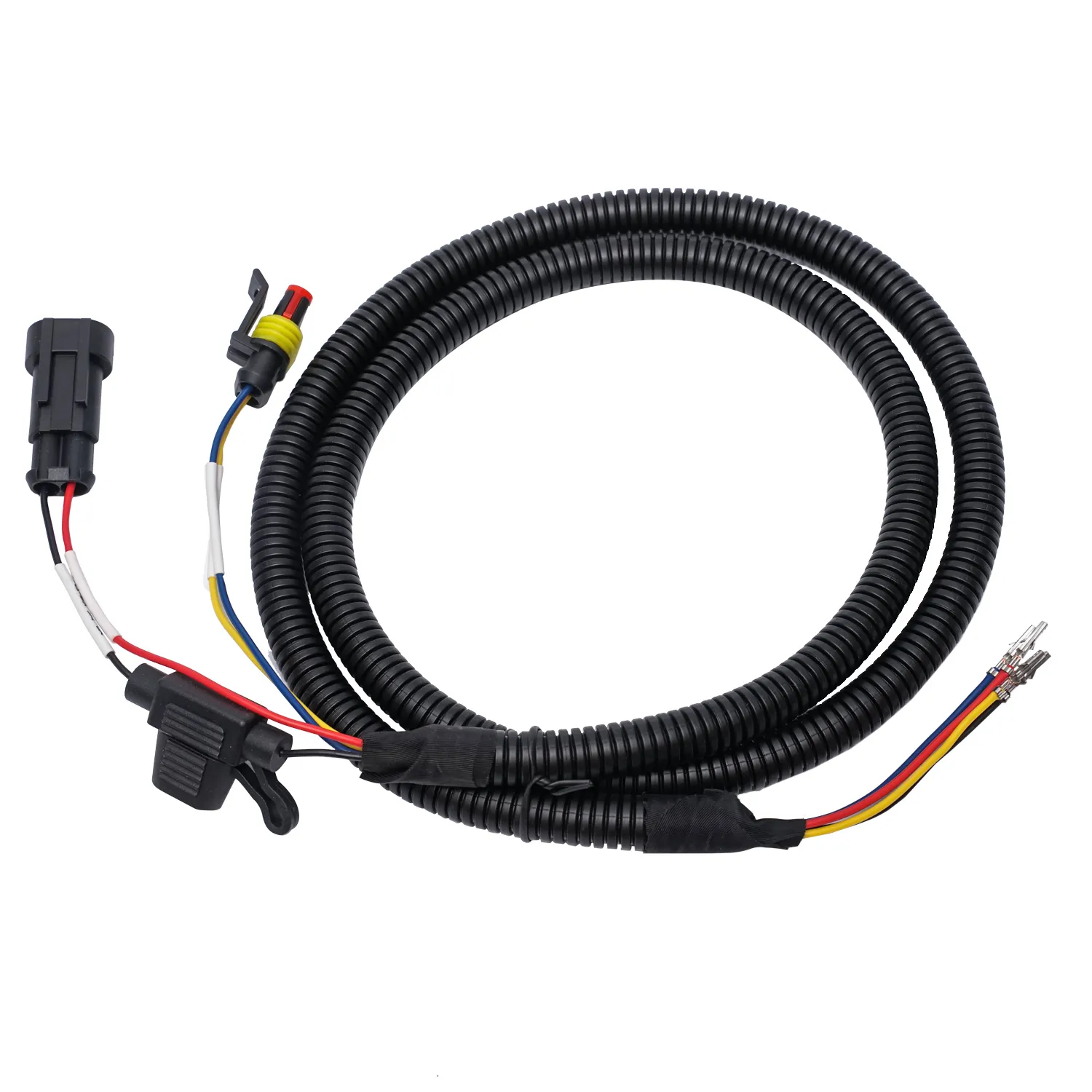

🔶Automotive Wiring
Insulation and sheathing for automotive wire harnesses with oil and heat resistance.
🔶Appliance & Equipment Wiring
PVC insulation for internal wiring of appliances, electronics, and electrical equipment.
🔶Specialty Profiles
Custom extruded profiles for specialized applications in industrial and commercial settings.
🔶Custom Formulations
Tailored compounds developed to meet specific customer requirements for hardness, color, and processing characteristics.
Building Wire Insulation
Automotive Wiring
Specialty Profiles
· Why Choose Us
Small BossSmall Boss has been manufacturing PVC cable compounds for over 30 years. Our formulations meet IEC 60811 standards and are used by cable manufacturers across Asia, Africa, and the Middle East.
We offer 70C and 90C rated grades, flame retardant formulations, lead-free stabilizer systems, and custom colors for circuit identification. Our laboratory can develop formulations to meet specific national cable standards.
As an ISO-certified manufacturer, we maintain rigorous quality control systems. Our products are tested and verified by international third-party laboratories including SGS, Intertek, and Bureau Veritas.
30+ Years Experience
PVC Modification Technology
72,000 MT/Year
Production Capacity
100+ Countries
Global Export Coverage
OEM/ODM Available
Custom Formulations
Ready to Upgrade Your Wire & Cable Compound Supply Chain?
Get Free Samples & Technical Consultation
Email: zt02@smallboss.com | Website: www.ztsmallboss.com
