PVC Compound for Cable Trunking
Flame-retardant PVC for cable trunking (UL 94 V-0, GWIT 960°C). 30+ yrs mfg. Request free samples!
Flame-retardant PVC for cable trunking (UL 94 V-0, GWIT 960°C). 30+ yrs mfg. Request free samples!
Previous: No more data
★ Premium Cable Trunking Compound Supplier ★
30+ Years PVC Modification Technology · ISO Certified Manufacturer
Export to 120+ Countries Worldwide · SGS, Intertek, Bureau Veritas Verified
Product Overview
Small BossSmallBoss PVC Compound for Cable Trunking is a rigid PVC (UPVC) extrusion-grade compound specifically engineered for manufacturing cable trunking, raceway, and cable management systems. Our compound delivers the precise combination of rigidity, impact resistance, and flame retardancy that trunking manufacturers demand.
Designed for extrusion processing, our compound produces trunking profiles with consistent dimensions, smooth surfaces, and reliable snap-fit connections. Available in white and custom colors to meet diverse market requirements.
· Specification
Small Boss| Parameter | Value |
|---|---|
| Product Name | PVC Compound for Cable Trunking |
| Material Type | Rigid PVC (UPVC) Extrusion Grade |
| Application | Cable Trunking, Raceway, Cable Management Systems |
| Hardness | Shore D 75-77 |
| Density | 1.35-1.50 g/cm3 |
| Tensile Strength | >= 40 MPa |
| Flexural Strength | >= 50 MPa |
| IZOD Impact Strength | >= 70 J/m |
| Dielectric Strength | > 20 kV/mm |
| Flame Rating | UL 94 V-0 |
| Limiting Oxygen Index (LOI) | >= 32% |
| Glow Wire Test | +960C |
| Service Temperature | -25C to +65C |
| Processing Temperature | 160-190C |
| Standard Colors | White, Grey + Custom |
| Certifications | SGS, Intertek, Bureau Veritas Verified |
· Advantage
Small Boss🔶White Discoloration & Yellowing
Premium tin-based stabilizer system maintains long-term color stability. White stays white.
🔶Brittle Snap-Fit Joints
CPE/acrylic impact modifiers ensure IZOD >=70 J/m. Snap-fit joints flex without cracking, even at -25C.
🔶Rough Surface & Fish Eyes
Optimized processing aids and tight particle-size QC deliver smooth, glossy surfaces every batch.
🔶Flame Retardancy Failure
UL 94 V-0, LOI >=32%, glow wire +960C pass. Synergistic Sb2O3/ZnB system ensures consistency.
🔶Proven Quality Control
Every batch undergoes rigorous QC testing including mechanical properties, dimensional stability, and color consistency. Our ISO-certified lab ensures compound performance matches specifications batch after batch.
· Application

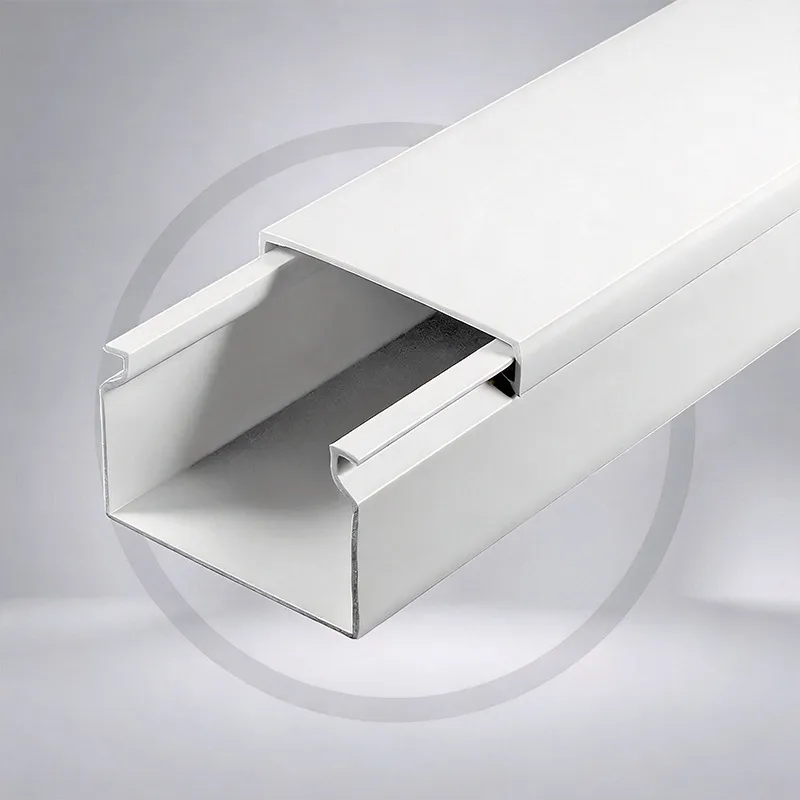

Small Boss🔶Standard Cable Trunking
Wall-mounted and surface-mounted trunking for residential and commercial wiring.
🔶Floor Type Raceway
Floor-level cable management for open-plan offices and data centers.

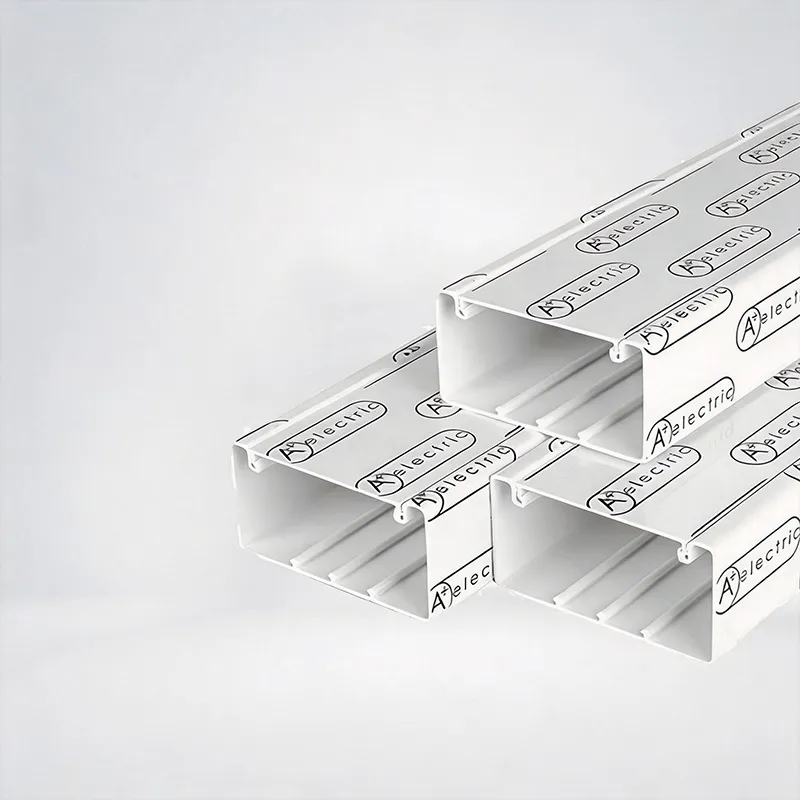

🔶Slotted Type Trunking
Pre-slotted trunking for easy cable entry and modular installations.
🔶Modular Cable Management
Snap-together modular systems for flexible, expandable cable routing.
🔶Specialty Profiles
Custom extruded profiles for specialized applications in industrial and commercial settings.
🔶Custom Formulations
Tailored compounds developed to meet specific customer requirements for hardness, color, and processing characteristics.
Standard Cable Trunking
Modular Cable Management
Floor Type Raceway
· Why Choose Us
Small BossTongxiang Small Boss Special Plastic Products Co., Ltd. is a professional PVC compound manufacturer with 30+ years of experience in PVC modification technology. Headquartered in Tongxiang, Zhejiang Province, China, we specialize in developing and producing high-performance PVC compounds for various applications including cable management, construction, automotive, and industrial products.
Our production facility features 120+ extrusion lines with an annual capacity of 72,000 metric tons. We export to 100+ countries worldwide and maintain long-term partnerships with leading manufacturers in Europe, Americas, Southeast Asia, and the Middle East.
As an ISO-certified manufacturer, we maintain rigorous quality control systems. Our products are tested and verified by international third-party laboratories including SGS, Intertek, and Bureau Veritas.
30+ Years Experience
PVC Modification Technology
72,000 MT/Year
Production Capacity
100+ Countries
Global Export Coverage
OEM/ODM Available
Custom Formulations
Ready to Upgrade Your Cable Trunking Compound Supply Chain?
Get Free Samples & Technical Consultation
Email: zt02@smallboss.com | Website: www.ztsmallboss.com
