Premium PVC Compound for Cable Trunking
SmallBoss PVC Compound for Cable Trunking is a rigid PVC (UPVC) extrusion-grade compound specifically engineered for manufacturing cable trunking, raceway, and cable management systems. Our compound delivers the precise combination of rigidity, impact resistance, and flame retardancy that trunking manufacturers demand.
SmallBoss PVC Compound for Cable Trunking is a rigid PVC (UPVC) extrusion-grade compound specifically engineered for manufacturing cable trunking, raceway, and cable management systems. Our compound delivers the precise combination of rigidity, impact resistance, and flame retardancy that trunking manufacturers demand.
Previous: No more data
Product Overview
SmallBoss PVC Compound for Cable Trunking is a rigid PVC (UPVC) extrusion-grade compound specifically engineered for manufacturing cable trunking, raceway, and cable management systems. Our compound delivers the precise combination of rigidity, impact resistance, and flame retardancy that trunking manufacturers demand.
Designed for extrusion processing, our compound produces trunking profiles with consistent dimensions, smooth surfaces, and reliable snap-fit connections. Available in white and custom colors to meet diverse market requirements.
Specification
|
Parameter |
Value |
|
Product Name |
PVC Compound for Cable Trunking |
|
Material Type |
Rigid PVC (UPVC) Extrusion Grade |
|
Application |
Cable Trunking, Raceway, Cable Management Systems |
|
Hardness |
Shore D 75-77 |
|
Density |
1.35-1.50 g/cm3 |
|
Tensile Strength |
>= 40 MPa |
|
Flexural Strength |
>= 50 MPa |
|
IZOD Impact Strength |
>= 70 J/m |
|
Dielectric Strength |
> 20 kV/mm |
|
Flame Rating |
UL 94 V-0 |
|
Limiting Oxygen Index (LOI) |
>= 32% |
|
Glow Wire Test |
+960C |
|
Service Temperature |
-25C to +65C |
|
Processing Temperature |
160-190C |
|
Standard Colors |
White, Grey + Custom |
|
Certifications |
SGS, Intertek, Bureau Veritas Verified |
How We Solve Your Production Challenges
White Discoloration & Yellowing
Problem: White trunking yellows over time from UV exposure and poor stabilization.
Solution: Premium tin-based stabilizer system maintains long-term color stability. White stays white.
Brittle Snap-Fit Joints
Problem: Low-impact PVC cracks at snap-fit connections during assembly or in cold weather.
Solution: CPE/acrylic impact modifiers ensure IZOD >=70 J/m. Snap-fit joints flex without cracking, even at -25C.
Rough Surface & Fish Eyes
Problem: Poor gelation causes rough surfaces and visible fish eyes on trunking profiles.
Solution: Optimized processing aids and tight particle-size QC deliver smooth, glossy surfaces every batch.
Flame Retardancy Failure
Problem: Inadequate flame retardants cause UL 94 or glow wire test failures, blocking certification.
Solution: UL 94 V-0, LOI >=32%, glow wire +960C pass. Synergistic Sb2O3/ZnB system ensures consistency.
Application

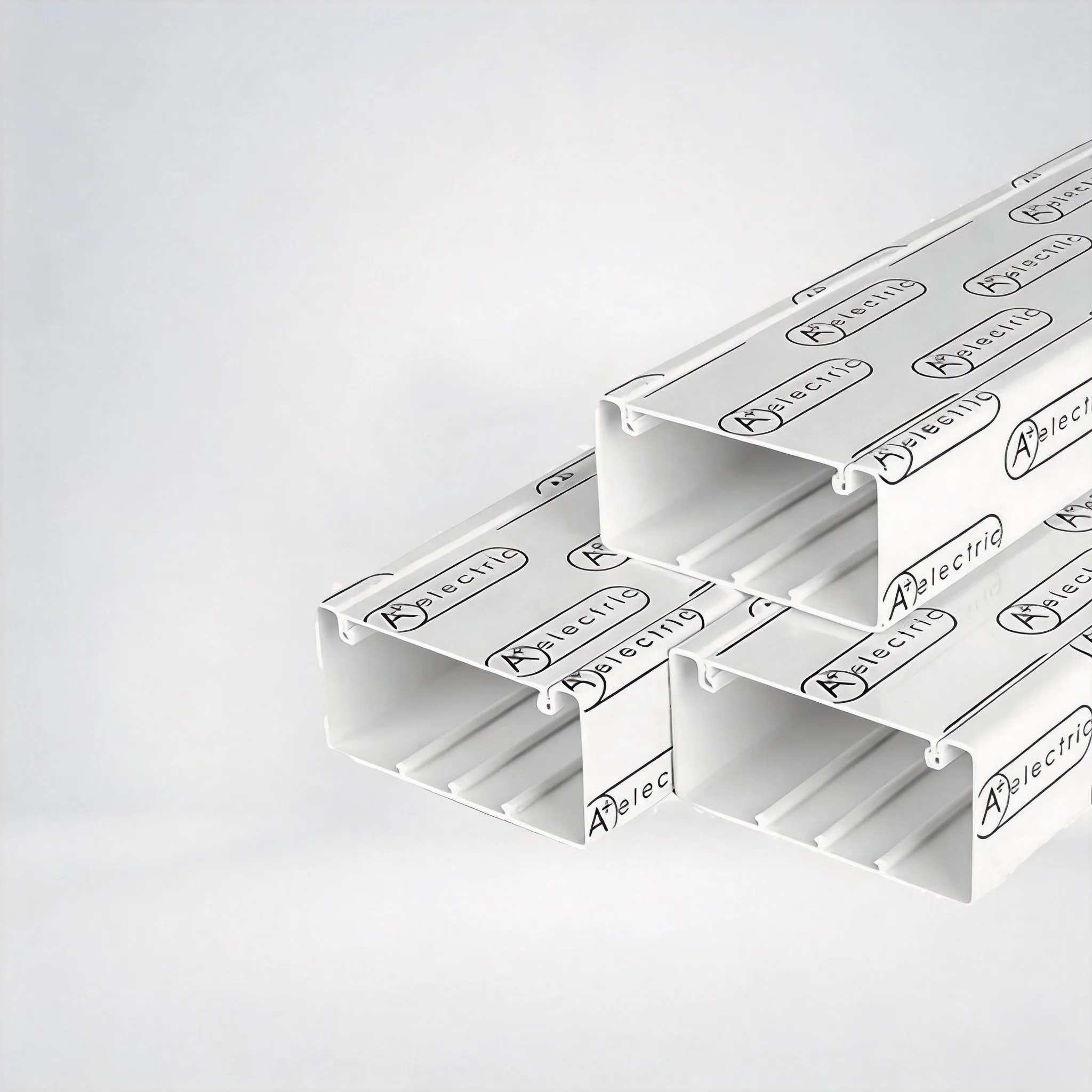

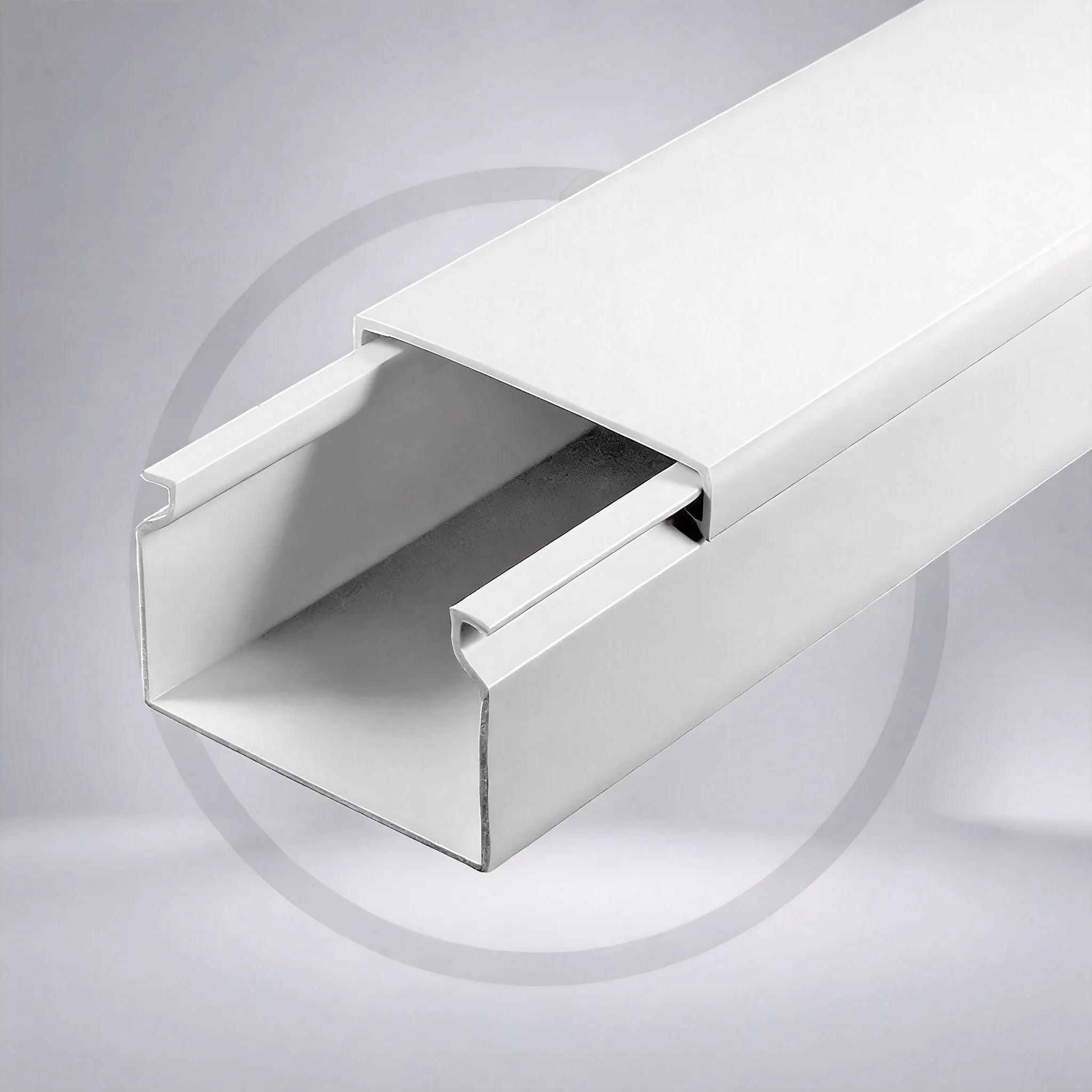

Standard Cable Trunking
Wall-mounted and surface-mounted trunking for residential and commercial wiring.

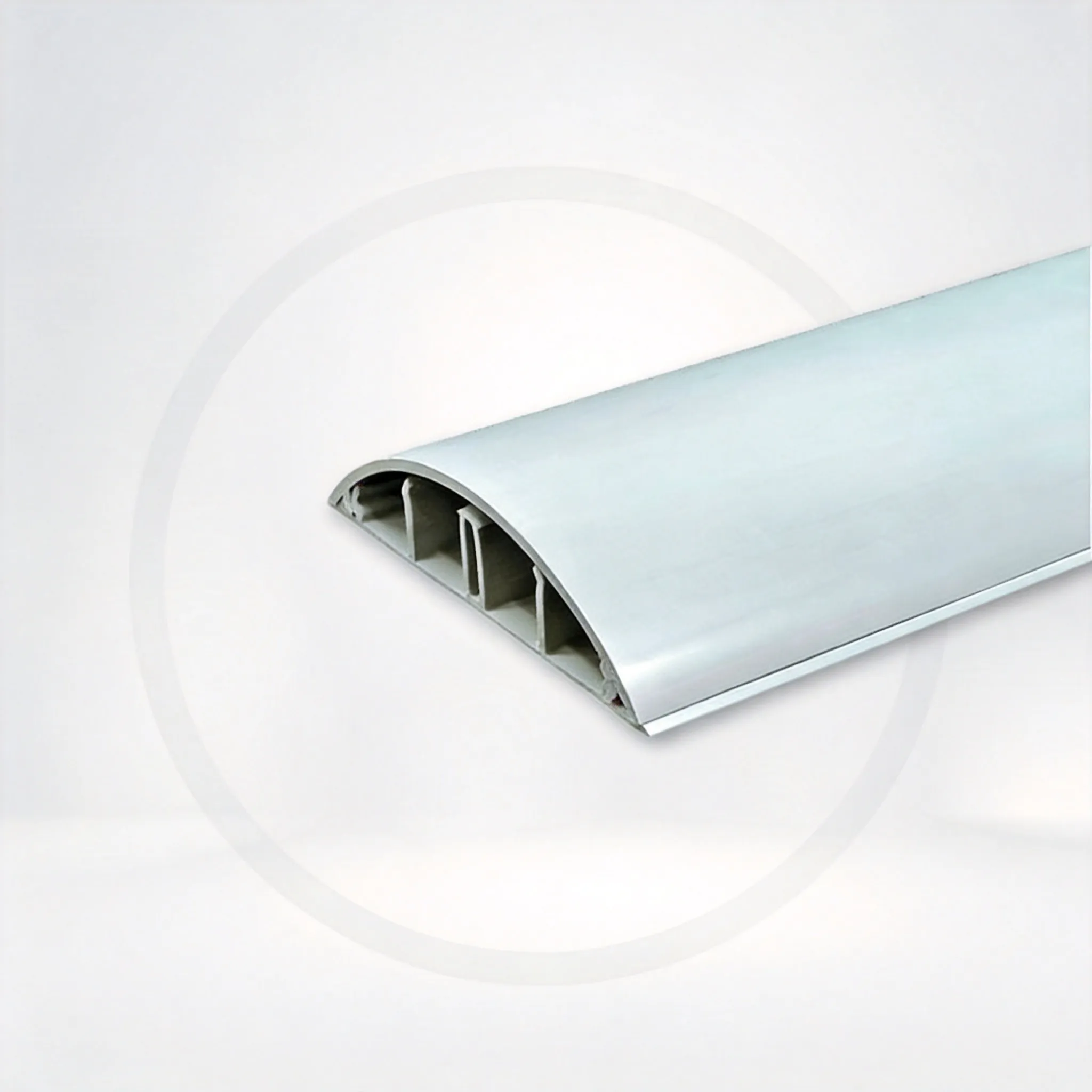

Floor Type Raceway
Floor-level cable management for open-plan offices and data centers.

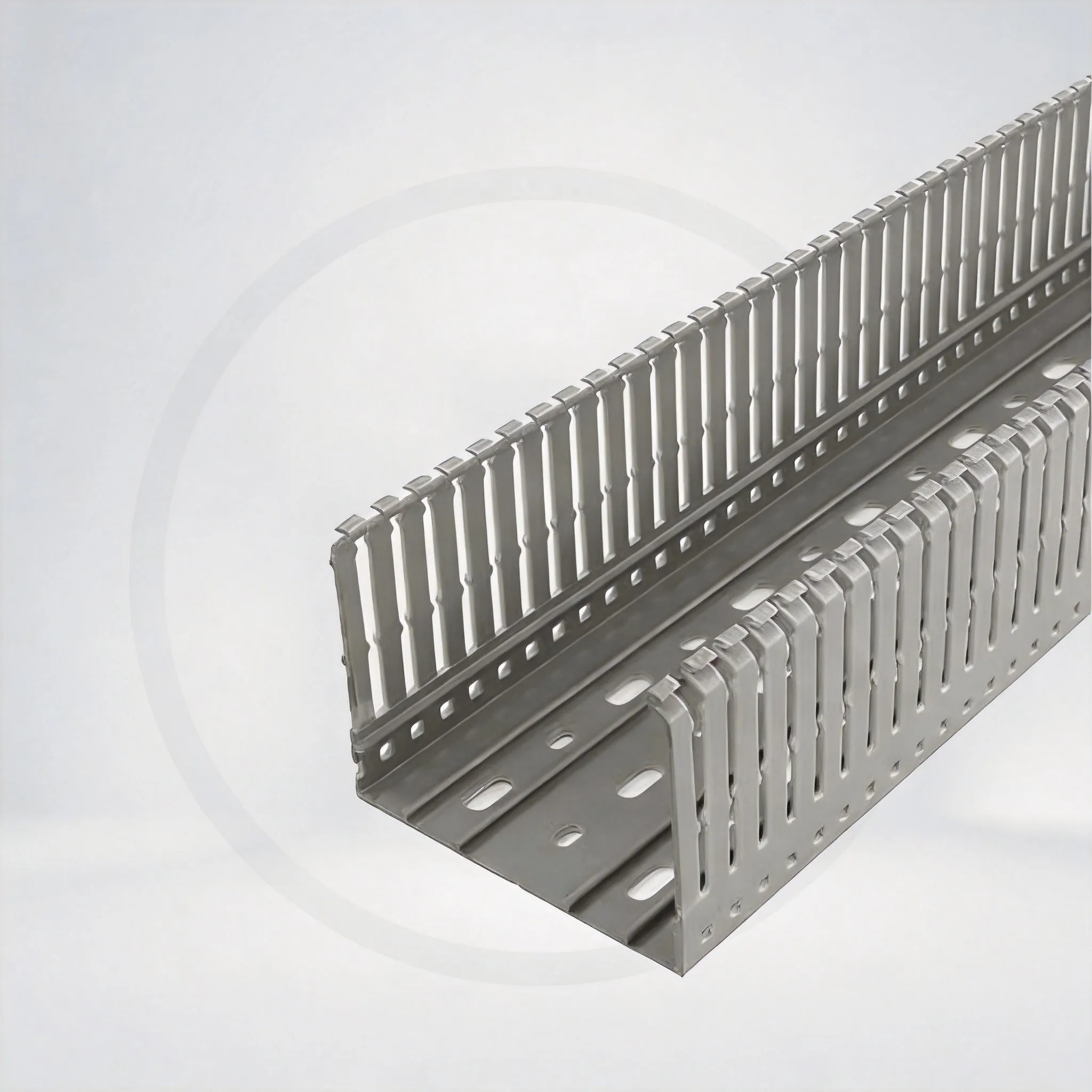

Slotted Type Trunking
Pre-slotted trunking for easy cable entry and modular installations.
Modular Cable Management
Snap-together modular systems for flexible, expandable cable routing.
|
|
|
|
|
|
Standard Cable Trunking
Floor Type Raceway
Slotted Type Trunking
Modular Cable Management
Why Choose Us
Tongxiang Small Boss Special Plastic Products Co., Ltd. is a professional PVC compound manufacturer with 30+ years of experience in PVC modification technology. Headquartered in Tongxiang, Zhejiang Province, China, we specialize in developing and producing high-performance PVC compounds for various applications including cable management, construction, automotive, and industrial products.
Our production facility features 120+ extrusion lines with an annual capacity of 50,000 metric tons. We export to 120+ countries worldwide and maintain long-term partnerships with leading manufacturers in Europe, Americas, Southeast Asia, and the Middle East.
30+ Years Experience
PVC Modification Technology
50,000 MT/Year
Production Capacity
120+ Countries
Global Export Coverage
OEM/ODM Available
Custom Formulations
Product Overview
SmallBoss PVC Compound for Cable Trunking is a rigid PVC (UPVC) extrusion-grade compound specifically engineered for manufacturing cable trunking, raceway, and cable management systems. Our compound delivers the precise combination of rigidity, impact resistance, and flame retardancy that trunking manufacturers demand.
Designed for extrusion processing, our compound produces trunking profiles with consistent dimensions, smooth surfaces, and reliable snap-fit connections. Available in white and custom colors to meet diverse market requirements.
Specification
|
Parameter |
Value |
|
Product Name |
PVC Compound for Cable Trunking |
|
Material Type |
Rigid PVC (UPVC) Extrusion Grade |
|
Application |
Cable Trunking, Raceway, Cable Management Systems |
|
Hardness |
Shore D 75-77 |
|
Density |
1.35-1.50 g/cm3 |
|
Tensile Strength |
>= 40 MPa |
|
Flexural Strength |
>= 50 MPa |
|
IZOD Impact Strength |
>= 70 J/m |
|
Dielectric Strength |
> 20 kV/mm |
|
Flame Rating |
UL 94 V-0 |
|
Limiting Oxygen Index (LOI) |
>= 32% |
|
Glow Wire Test |
+960C |
|
Service Temperature |
-25C to +65C |
|
Processing Temperature |
160-190C |
|
Standard Colors |
White, Grey + Custom |
|
Certifications |
SGS, Intertek, Bureau Veritas Verified |
How We Solve Your Production Challenges
White Discoloration & Yellowing
Problem: White trunking yellows over time from UV exposure and poor stabilization.
Solution: Premium tin-based stabilizer system maintains long-term color stability. White stays white.
Brittle Snap-Fit Joints
Problem: Low-impact PVC cracks at snap-fit connections during assembly or in cold weather.
Solution: CPE/acrylic impact modifiers ensure IZOD >=70 J/m. Snap-fit joints flex without cracking, even at -25C.
Rough Surface & Fish Eyes
Problem: Poor gelation causes rough surfaces and visible fish eyes on trunking profiles.
Solution: Optimized processing aids and tight particle-size QC deliver smooth, glossy surfaces every batch.
Flame Retardancy Failure
Problem: Inadequate flame retardants cause UL 94 or glow wire test failures, blocking certification.
Solution: UL 94 V-0, LOI >=32%, glow wire +960C pass. Synergistic Sb2O3/ZnB system ensures consistency.
Application
Standard Cable Trunking
Wall-mounted and surface-mounted trunking for residential and commercial wiring.
Floor Type Raceway
Floor-level cable management for open-plan offices and data centers.
Slotted Type Trunking
Pre-slotted trunking for easy cable entry and modular installations.
Modular Cable Management
Snap-together modular systems for flexible, expandable cable routing.
|
|
|
|
|
|
Why Choose Us
Tongxiang Small Boss Special Plastic Products Co., Ltd. is a professional PVC compound manufacturer with 30+ years of experience in PVC modification technology. Headquartered in Tongxiang, Zhejiang Province, China, we specialize in developing and producing high-performance PVC compounds for various applications including cable management, construction, automotive, and industrial products.
Our production facility features 120+ extrusion lines with an annual capacity of 50,000 metric tons. We export to 120+ countries worldwide and maintain long-term partnerships with leading manufacturers in Europe, Americas, Southeast Asia, and the Middle East.
30+ Years Experience
PVC Modification Technology
50,000 MT/Year
Production Capacity
120+ Countries
Global Export Coverage
OEM/ODM Available
Custom Formulations
