17 catalog profiles
A broad SYP range supports triangular and special formwork-edge geometries.
▎Products Description

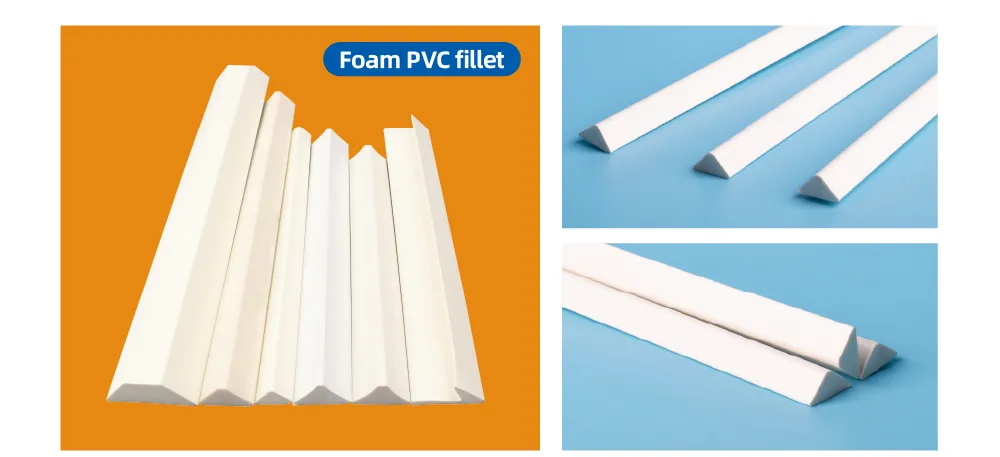

Foam PVC Chamfer Strips for Concrete Formwork
Small Boss foam PVC chamfer strips form beveled or shaped concrete edges in compatible precast and cast-in-place formwork. The English catalog lists 17 SYP profiles from 15.5 × 7.6 mm to 60 × 30 mm; final choice depends on the required edge geometry and formwork method.
Small Boss foam PVC chamfer strips form beveled or shaped concrete edges in compatible precast and cast-in-place formwork. The English catalog lists 17 SYP profiles from 15.5 × 7.6 mm to 60 × 30 mm; final choice depends on the required edge geometry and formwork method.
Previous: No more data
Next: No more data
Concrete edge forming
Foam PVC Chamfer Strips for Concrete Formwork
Small Boss foam PVC chamfer strips form beveled or shaped concrete edges in compatible precast and cast-in-place formwork. The English catalog lists 17 SYP profiles from 15.5 × 7.6 mm to 60 × 30 mm; final choice depends on the required edge geometry and formwork method.
Buyer shortcut: Send the model or drawing, required length, colour, quantity, application and destination. Reference MOQ: 10,000 m.
17 modelsCatalog SYP range
15.5–60 mmListed profile width range
7.37–30 mmListed profile height range
10,000 mReference MOQ for this profile category
Model-specific data

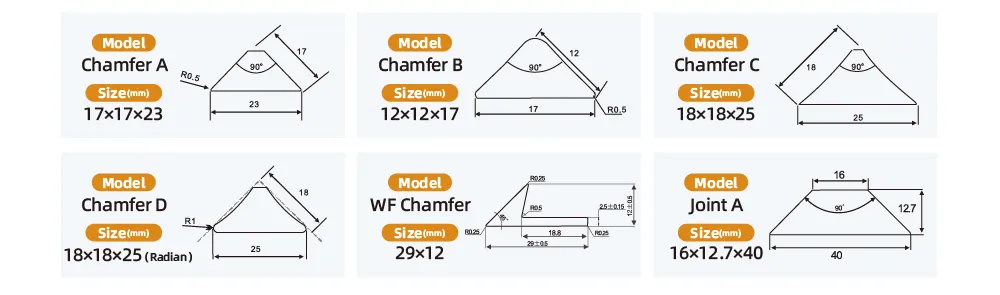

Clean Product Drawing and Searchable Specifications
The visual and table are separated so dimensions do not become mixed with adjacent catalog models.
| SYP107 | 22.5 × 10 mm |
|---|---|
| SYP109 | 40 × 12.7 mm |
| SYP110 | 15.5 × 7.6 mm |
| SYP111 | 24 × 11.4 mm |
| SYP113 | 25.6 × 12.9 mm |
| SYP116 | 29 × 12 mm |
| SYP117 | 17 × 7.5 mm |
| SYP122 | 26.5 × 11 mm |
| SYP123 | 32 × 15 mm |
| SYP124 | 21 × 8.8 mm |
| SYP126 | 24 × 11.5 mm |
| SYP127 | 21 × 7.37 mm |
| SYP128 | 58 × 12 mm |
| SYP024 | 21 × 9.6 mm |
| SYP025 | 60 × 30 mm |
| SYP009 | 50 × 25 mm |
| SYP104 | 23 × 13 mm |
Selection boundary: Catalog dimensions support identification and quotation. Final tolerance, formulation, colour, length, packing, compliance and suitability follow the approved drawing, sample and order specification.
Decision points
Why Buyers Specify This Profile
Drawing-led selection
Cross-section shape matters as much as nominal width and height.
Trial before production
Fixing, release agent, mould and concrete process should be checked with the approved sample.
Application fit
Where the Product Fits and What Must Be Confirmed

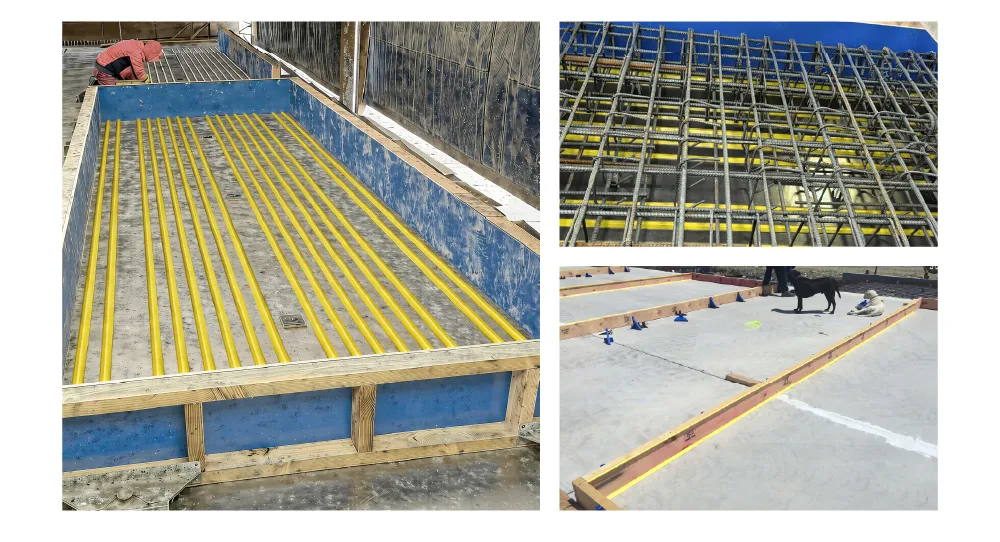

Precast concrete
Forms repeatable beveled edges when the strip geometry and attachment method match the mould.
Cast-in-place formwork
Creates a controlled edge detail at columns, beams, walls and openings, subject to release and fixing trials.
Custom formwork details
Non-triangular SYP profiles can address project-specific recesses or edge shapes after drawing and sample approval.
Selection guidance
Specify the required concrete-edge drawing, strip profile, contact dimensions, length, fixing method, mould material, release agent, reuse expectation, quantity and tolerance. Trial the approved sample with the actual concrete and formwork process.
Installation planning
Four Checks Before the Product Is Concealed or Put into Service
Select the cross-section
Match the concrete-edge drawing to the exact SYP profile.
Trial the fixing method
Check nails, adhesive or mechanical retention against the mould material.
Place concrete
Control strip movement, leakage, vibration and edge coverage during casting.
Strip and inspect
Confirm edge geometry, surface finish and reuse condition before the next cycle.
Submittal readiness
Information and Documents to Align Before Production
Buyer supplies
- Model, dimensioned drawing or physical sample
- Application, substrate or equipment interface
- Target standard, test method and acceptance criteria
- Colour, length, quantity, packing and destination
Confirm with Small Boss
- Approved product drawing and sample plan
- Tooling, tolerance and material option
- Applicable inspection and test documents
- Production, packaging and delivery schedule
Manufacturing evidence
Small Boss Profile Manufacturing and Quality-Control Basis
1992Manufacturing origin; legal company registered in 2002
64,314.88 m²Certified building area
150+Production and pilot lines across company categories
350+Employees as of August 5, 2026
>30%R&D personnel share
100+Countries and regions supplied cumulatively
Tongxiang Small Boss Special Plastic Products Co., Ltd. began manufacturing activity in 1992 and was formally registered in 2002. Management systems are certified to ISO 9001, ISO 14001 and ISO 45001. As of July 2026, the company held 73 valid domestic patents and 4 valid international patents.
RFQ checklist
Get a Faster, Technically Relevant Quotation
MOQReference MOQ: 10,000 m
ProductModel/drawing, dimensions, length, colour and quantity
ApplicationEnvironment, loads/service conditions, installation and standard
DeliveryDestination, packaging, required documents and schedule
Use the page inquiry form and attach or describe the drawing and application. A complete RFQ reduces repeated clarification and helps the technical team respond with the correct profile basis.
Technical answers
Foam PVC Chamfer Strips for Concrete Formwork FAQ
How many foam PVC chamfer profiles are listed?
The English catalog lists 17 SYP profiles with distinct drawings and millimetre dimensions.
Can a chamfer strip be selected only by width and height?
No. The exact cross-section, concrete edge, fixing face and release process must match the approved drawing and sample.
Are fireproof or unlimited-reuse claims included?
No. Performance should be stated only against the confirmed formulation, test method and actual formwork conditions.
Explore the category
Related Products for Comparison
PVC Wall and Ceiling Panels for Hygienic InteriorsQL12, QL16 and QL18 tongue-and-groove panelsCustom PVC Mining Conveyor Roller Tube and Profilesdrawing-led PVC mining conveyor roller tube and profile developmentFlexible PVC Corrugated Conduit for Cable Protection16 mm and 20 mm flexible PVC conduit
Concrete edge forming
Foam PVC Chamfer Strips for Concrete Formwork
Small Boss foam PVC chamfer strips form beveled or shaped concrete edges in compatible precast and cast-in-place formwork. The English catalog lists 17 SYP profiles from 15.5 × 7.6 mm to 60 × 30 mm; final choice depends on the required edge geometry and formwork method.
Buyer shortcut: Send the model or drawing, required length, colour, quantity, application and destination. Reference MOQ: 10,000 m.
17 modelsCatalog SYP range
15.5–60 mmListed profile width range
7.37–30 mmListed profile height range
10,000 mReference MOQ for this profile category
Model-specific data
Clean Product Drawing and Searchable Specifications
The visual and table are separated so dimensions do not become mixed with adjacent catalog models.
| SYP107 | 22.5 × 10 mm |
|---|---|
| SYP109 | 40 × 12.7 mm |
| SYP110 | 15.5 × 7.6 mm |
| SYP111 | 24 × 11.4 mm |
| SYP113 | 25.6 × 12.9 mm |
| SYP116 | 29 × 12 mm |
| SYP117 | 17 × 7.5 mm |
| SYP122 | 26.5 × 11 mm |
| SYP123 | 32 × 15 mm |
| SYP124 | 21 × 8.8 mm |
| SYP126 | 24 × 11.5 mm |
| SYP127 | 21 × 7.37 mm |
| SYP128 | 58 × 12 mm |
| SYP024 | 21 × 9.6 mm |
| SYP025 | 60 × 30 mm |
| SYP009 | 50 × 25 mm |
| SYP104 | 23 × 13 mm |
Selection boundary: Catalog dimensions support identification and quotation. Final tolerance, formulation, colour, length, packing, compliance and suitability follow the approved drawing, sample and order specification.
Decision points
Why Buyers Specify This Profile
17 catalog profiles
A broad SYP range supports triangular and special formwork-edge geometries.
Drawing-led selection
Cross-section shape matters as much as nominal width and height.
Trial before production
Fixing, release agent, mould and concrete process should be checked with the approved sample.
Application fit
Where the Product Fits and What Must Be Confirmed
Precast concrete
Forms repeatable beveled edges when the strip geometry and attachment method match the mould.
Cast-in-place formwork
Creates a controlled edge detail at columns, beams, walls and openings, subject to release and fixing trials.
Custom formwork details
Non-triangular SYP profiles can address project-specific recesses or edge shapes after drawing and sample approval.
Selection guidance
Specify the required concrete-edge drawing, strip profile, contact dimensions, length, fixing method, mould material, release agent, reuse expectation, quantity and tolerance. Trial the approved sample with the actual concrete and formwork process.
Installation planning
Four Checks Before the Product Is Concealed or Put into Service
Select the cross-section
Match the concrete-edge drawing to the exact SYP profile.
Trial the fixing method
Check nails, adhesive or mechanical retention against the mould material.
Place concrete
Control strip movement, leakage, vibration and edge coverage during casting.
Strip and inspect
Confirm edge geometry, surface finish and reuse condition before the next cycle.
Submittal readiness
Information and Documents to Align Before Production
Buyer supplies
- Model, dimensioned drawing or physical sample
- Application, substrate or equipment interface
- Target standard, test method and acceptance criteria
- Colour, length, quantity, packing and destination
Confirm with Small Boss
- Approved product drawing and sample plan
- Tooling, tolerance and material option
- Applicable inspection and test documents
- Production, packaging and delivery schedule
Manufacturing evidence
Small Boss Profile Manufacturing and Quality-Control Basis
1992Manufacturing origin; legal company registered in 2002
64,314.88 m²Certified building area
150+Production and pilot lines across company categories
350+Employees as of August 5, 2026
>30%R&D personnel share
100+Countries and regions supplied cumulatively
Tongxiang Small Boss Special Plastic Products Co., Ltd. began manufacturing activity in 1992 and was formally registered in 2002. Management systems are certified to ISO 9001, ISO 14001 and ISO 45001. As of July 2026, the company held 73 valid domestic patents and 4 valid international patents.
RFQ checklist
Get a Faster, Technically Relevant Quotation
MOQReference MOQ: 10,000 m
ProductModel/drawing, dimensions, length, colour and quantity
ApplicationEnvironment, loads/service conditions, installation and standard
DeliveryDestination, packaging, required documents and schedule
Use the page inquiry form and attach or describe the drawing and application. A complete RFQ reduces repeated clarification and helps the technical team respond with the correct profile basis.
Technical answers
Foam PVC Chamfer Strips for Concrete Formwork FAQ
How many foam PVC chamfer profiles are listed?
The English catalog lists 17 SYP profiles with distinct drawings and millimetre dimensions.
Can a chamfer strip be selected only by width and height?
No. The exact cross-section, concrete edge, fixing face and release process must match the approved drawing and sample.
Are fireproof or unlimited-reuse claims included?
No. Performance should be stated only against the confirmed formulation, test method and actual formwork conditions.
Explore the category
Related Products for Comparison
PVC Wall and Ceiling Panels for Hygienic InteriorsQL12, QL16 and QL18 tongue-and-groove panelsCustom PVC Mining Conveyor Roller Tube and Profilesdrawing-led PVC mining conveyor roller tube and profile developmentFlexible PVC Corrugated Conduit for Cable Protection16 mm and 20 mm flexible PVC conduit
