▎Products Description
flame retardant PVC compound
SmallBoss flame retardant PVC compound. ISO certified, 30+ years manufacturer. Free samples, global shipping.
SmallBoss flame retardant PVC compound. ISO certified, 30+ years manufacturer. Free samples, global shipping.
Previous: No more data
★ Premium Flame Retardant Compound Supplier ★
30+ Years PVC Modification Technology · ISO Certified Manufacturer
Export to 120+ Countries Worldwide · SGS, Intertek, Bureau Veritas Verified
Product Overview
Small BossSmallBoss Flame Retardant PVC Compound is engineered for high-fire-safety applications including building materials, electrical conduits, and cable insulation. With a Limiting Oxygen Index (LOI) of 32% or above, our compound achieves UL 94 V-0 rating and meets IEC 60332-3 flame propagation requirements, making it ideal for mandatory fire-safety applications in public buildings and high-voltage cable systems.
Available in both rigid and flexible grades from Shore A 70 to Shore D 85, our compound supports extrusion and injection molding processes. It delivers excellent thermal stability, low smoke emission, and compliance with RoHS and REACH regulations for global market access.
· Specification
Small Boss| Parameter | Value |
|---|---|
| Appearance | Grey / Black granules |
| Specific Gravity | 1.48 ± 0.03 g/cm3 |
| Hardness | 85 ± 3 Shore A |
| Tensile Strength (min.) | ≥ 12.5 MPa |
| Elongation at Break (min.) | ≥ 150 % |
| Limiting Oxygen Index (LOI) | ≥ 32 % |
| Flammability Rating | V-0 |
| Flame Propagation | Pass |
| HCl Emission (max.) | ≤ 18 % |
| Smoke Density (max.) | ≤ 300 |
| Thermal Stability @ 200°C | ≥ 50 min |
| Low-Temperature Brittleness | ≤ -20 °C |
| Heat Aging @ 100°C/168h | ≤ ±25 (retention) % |
| Volume Resistivity (min.) | ≥ 1×1013 Ω·cm |
| Regulatory Compliance | RoHS, REACH, UL |
| Processing Method | Extrusion / Injection Molding |
· Advantage
Small Boss🔶Insufficient Flame Retardancy Failing Safety Standards
Our compound achieves LOI ≥ 32% and UL 94 V-0 rating, ensuring reliable fire performance that meets building codes and cable safety standards across global markets.
🔶Excessive Smoke & Toxic Gas Emission During Combustion
Low-smoke formulation reduces smoke density below 300 and limits HCl emission to under 18%, improving evacuation safety in public buildings and enclosed spaces.
🔶Thermal Degradation During High-Temperature Processing
Enhanced thermal stability at 200°C for 50+ minutes ensures smooth processing without discoloration or degradation, reducing scrap rates and production downtime.
🔶Mechanical Property Loss in Fire-Retardant Formulations
Balanced formulation maintains tensile strength above 12.5 MPa and elongation above 150% while achieving superior flame retardancy, avoiding the brittleness common in high-filler compounds.
🔶Proven Quality Control
Every batch undergoes rigorous QC testing including mechanical properties, dimensional stability, and color consistency. Our ISO-certified lab ensures compound performance matches specifications batch after batch.
· Application

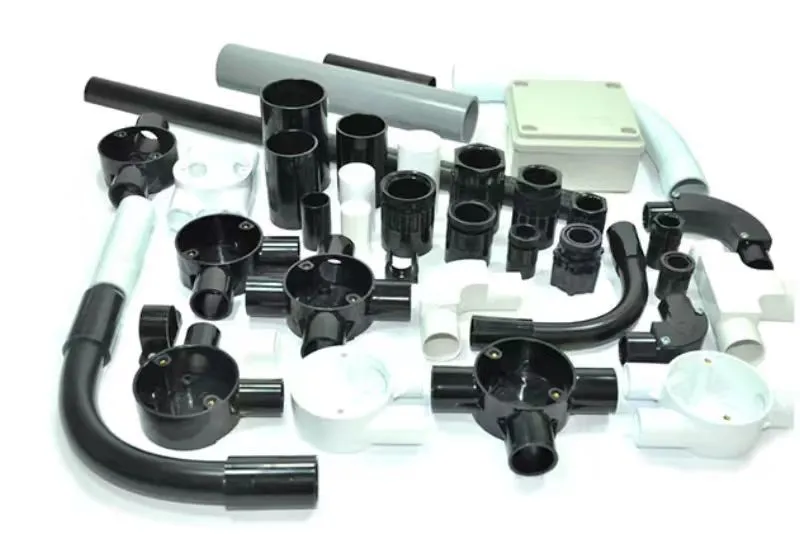

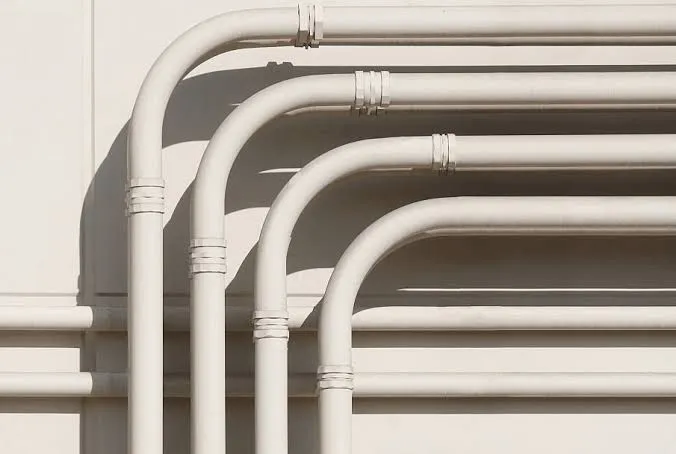

Small Boss🔶Building Electrical Conduits
Rigid PVC compound for electrical conduit pipes and fittings requiring flame retardancy and mechanical strength in commercial and residential construction.

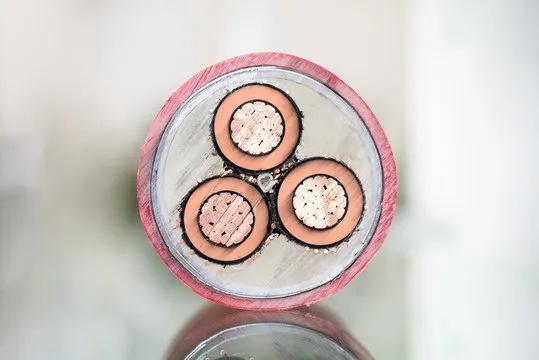

🔶Power & Control Cable Insulation
Flexible PVC compound for cable insulation and sheathing in power cables, control cables, and building wires meeting IEC and UL fire standards.

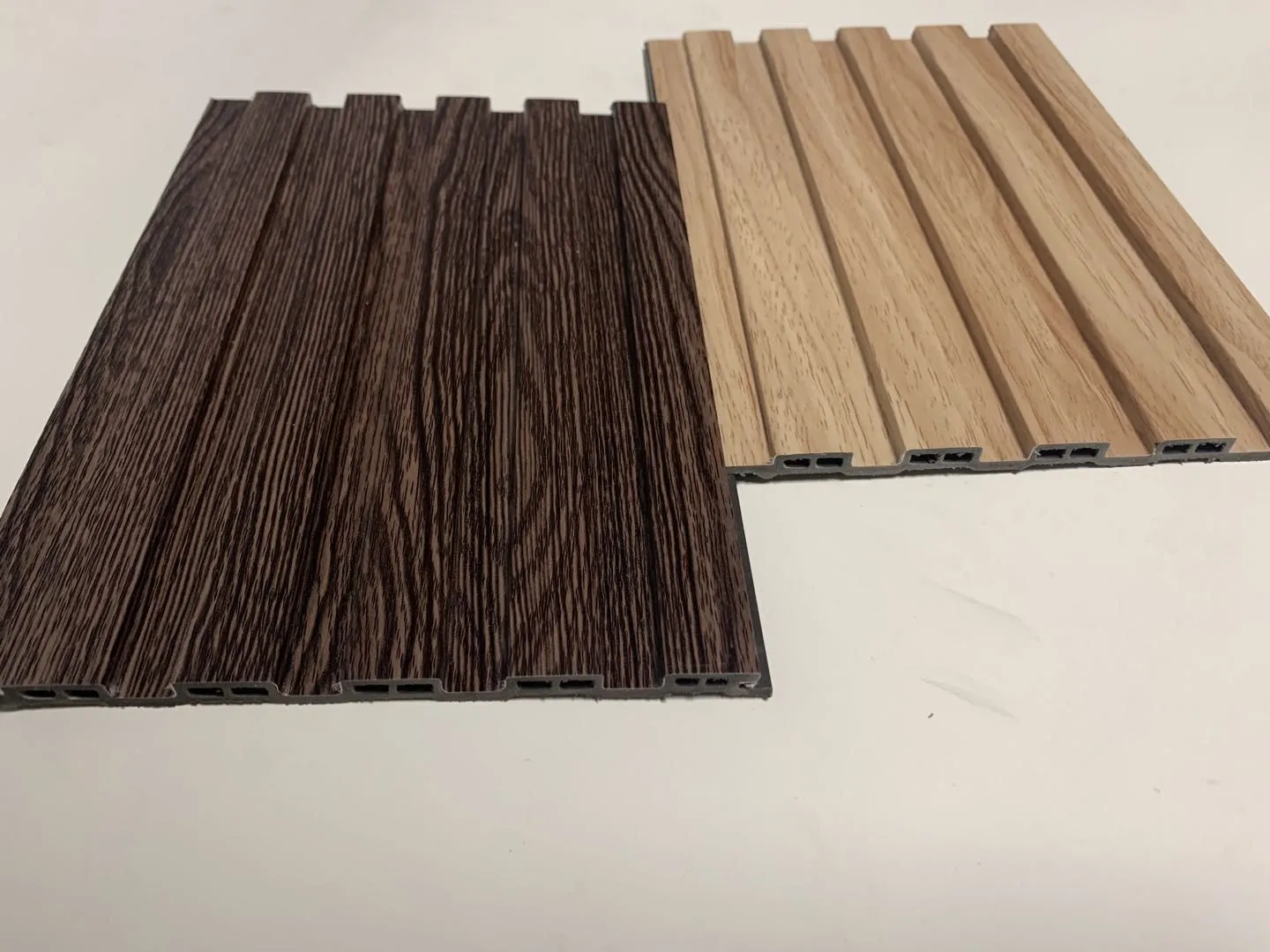

🔶Public Building Materials
Fire-retardant PVC profiles and panels for wall cladding, cable trunking, and ceiling systems in hospitals, schools, and transit stations.
🔶Transportation Cable Systems
Specialized compound for rail, automotive, and marine cable applications requiring EN 45545-2 and NF F 16-101 fire safety compliance.
🔶Specialty Profiles
Custom extruded profiles for specialized applications in industrial and commercial settings.
🔶Custom Formulations
Tailored compounds developed to meet specific customer requirements for hardness, color, and processing characteristics.
Building Electrical Conduits
Public Building Materials
Specialty Profiles
· Why Choose Us
Small BossTongxiang Small Boss Special Plastic Products Co., Ltd. has been specializing in PVC compound manufacturing Since 1992 (30+ Years). As a National High-Tech Enterprise and Specialized "Little Giant" company, we combine advanced formulation expertise with massive production capacity to serve construction and cable manufacturers worldwide.
Our 120+ high-speed extrusion lines deliver 6,000 tons per month, ensuring stable supply for large-scale fire-safety production programs. We collaborate with Zhejiang University, Hohai University, and Xi'an Jiaotong University for continuous R&D innovation in flame-retardant PVC formulations.
As an ISO-certified manufacturer, we maintain rigorous quality control systems. Our products are tested and verified by international third-party laboratories including SGS, Intertek, and Bureau Veritas.
30+ Years Experience
PVC Modification Technology
72,000 MT/Year
Production Capacity
100+ Countries
Global Export Coverage
OEM/ODM Available
Custom Formulations
Ready to Upgrade Your Flame Retardant Compound Supply Chain?
Get Free Samples & Technical Consultation
Email: zt02@smallboss.com | Website: www.ztsmallboss.com
