What Makes Sheet Pile Walls Watertight

Sheet pile walls can be made watertight through various design features and construction techniques. The following factors contribute to the watertightness of sheet pile walls:



Interlocking System: Sheet piles are designed with interlocking systems that enable them to connect tightly to form a continuous wall. The interlocks create a secure seal between adjacent sheet piles, preventing water from seeping through the joints. Common interlocking systems include Larssen, ball-and-socket, and hook-and-groove configurations.

Sheet Pile Profile: The profile of the sheet pile plays a crucial role in achieving watertightness. Some sheet pile profiles, such as Z-shaped or U-shaped profiles, provide better sealing capabilities due to their geometry. These profiles create a tighter interlock between the sheets and enhance the overall watertightness of the wall.



Sealant Materials: Sealant materials, such as rubber or polymeric compounds, can be applied to the interlocks or joints to enhance the watertightness of the sheet pile wall. These sealants fill any gaps or irregularities in the connections, creating a more effective barrier against water infiltration.

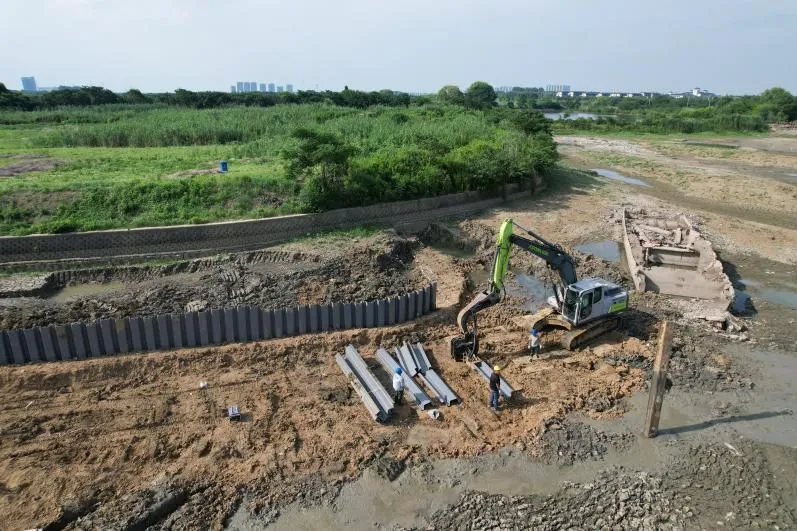

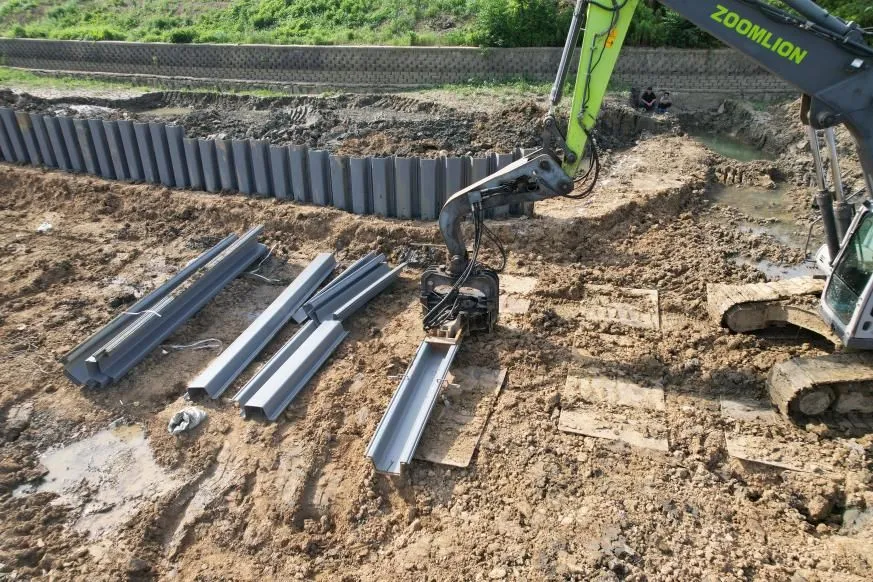

Sheet Pile Wall Alignment: Proper alignment and installation of sheet piles are critical to achieving watertightness. Ensuring that the sheet piles are accurately placed, vertically aligned, and tightly interlocked minimizes the potential for water leakage through the wall. Careful construction techniques, such as using vibratory hammers or hydraulic presses, help achieve the desired alignment and interlock tightness.



Anchoring and Tieback Systems: Anchoring and tieback systems provide additional stability to the sheet pile wall and help maintain its watertightness. These systems utilize anchors or tie rods that extend into the soil or rock behind the wall. By applying lateral forces to the sheet pile wall, they minimize deflection and potential gaps that could allow water to penetrate.



Grouting and Dewatering: In certain cases, grouting or dewatering techniques may be employed to enhance the watertightness of sheet pile walls. Grouting involves injecting cementitious grout into the soil surrounding the sheet pile wall to fill voids and create a more impermeable barrier. Dewatering methods, such as wellpoints or deep wells, can lower the groundwater table during construction, reducing water pressure against the wall and minimizing potential leakage.





Additional Waterproofing Measures: Depending on the specific project requirements and site conditions, additional waterproofing measures may be incorporated into the sheet pile wall design. These can include the use of geotextiles, drainage systems, or impermeable membranes to enhance the overall watertightness and performance of the wall.



By considering these factors and employing appropriate design and construction techniques, sheet pile walls can be made watertight, providing effective containment and protection against water infiltration in various applications, including flood control, waterfront structures, and underground construction projects.
